XG8B Series

Catalog

CONN HEADER VERT 100POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Color	Insulation Material	Voltage Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [custom]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Shape	Material Flammability Rating	Number of Rows [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Length - Mating	Contact Length - Mating	Termination	Shrouding	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Contact Material	Connector Type	Mounting Type	Contact Type	Current Rating (Amps)	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded

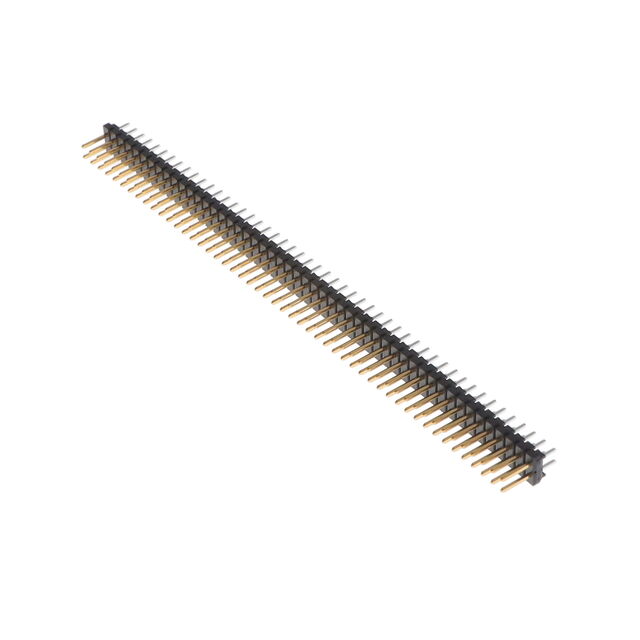

Omron Electronics Inc-EMC Div XG8B-0131	78.7 µin	2 µm	0.106 in	2.7 mm	Tin	Black	Polybutylene Terephthalate (PBT) Glass Filled	300 VDC	Push-Pull	0.1 "	2.54 mm	0.11 in	2.79 mm	-55 C	105 ░C	100	Square	UL94 V-0	2	5.9 µin	0.15 µm	6 mm	0.236 in	Solder	Unshrouded	Gold	0.453 in	11.5 mm	Brass Nickel	Header	Through Hole	Male Pin	3 A	Board to Board Cable	0.1 in	2.54 mm	All
Omron Electronics Inc-EMC Div XG8B-0134	78.7 µin	2 µm	0.244 in	6.2 mm	Tin	Black	Polybutylene Terephthalate (PBT) Glass Filled	300 VDC	Push-Pull	0.1 "	2.54 mm	0.11 in	2.79 mm	-55 C	105 ░C	100	Square	UL94 V-0	2	5.9 µin	0.15 µm	6 mm	0.236 in	Solder	Unshrouded	Gold			Brass Nickel	Header	Right Angle Through Hole	Male Pin	3 A	Board to Board Cable	0.1 in	2.54 mm	All
