EML15 Series

Manufacturer: XP Power

Catalog

AC/DC CONVERTER 5V 15W

Part	Voltage - Output 1	Features	Current - Output 1	Efficiency	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Type	Mounting Type	Applications	Weight	Weight	Load Regulation	Line Regulation	Current - Output (Max) [Max]	Approval Agency	Package / Case	Standard Number	Voltage - Output 1 [custom]

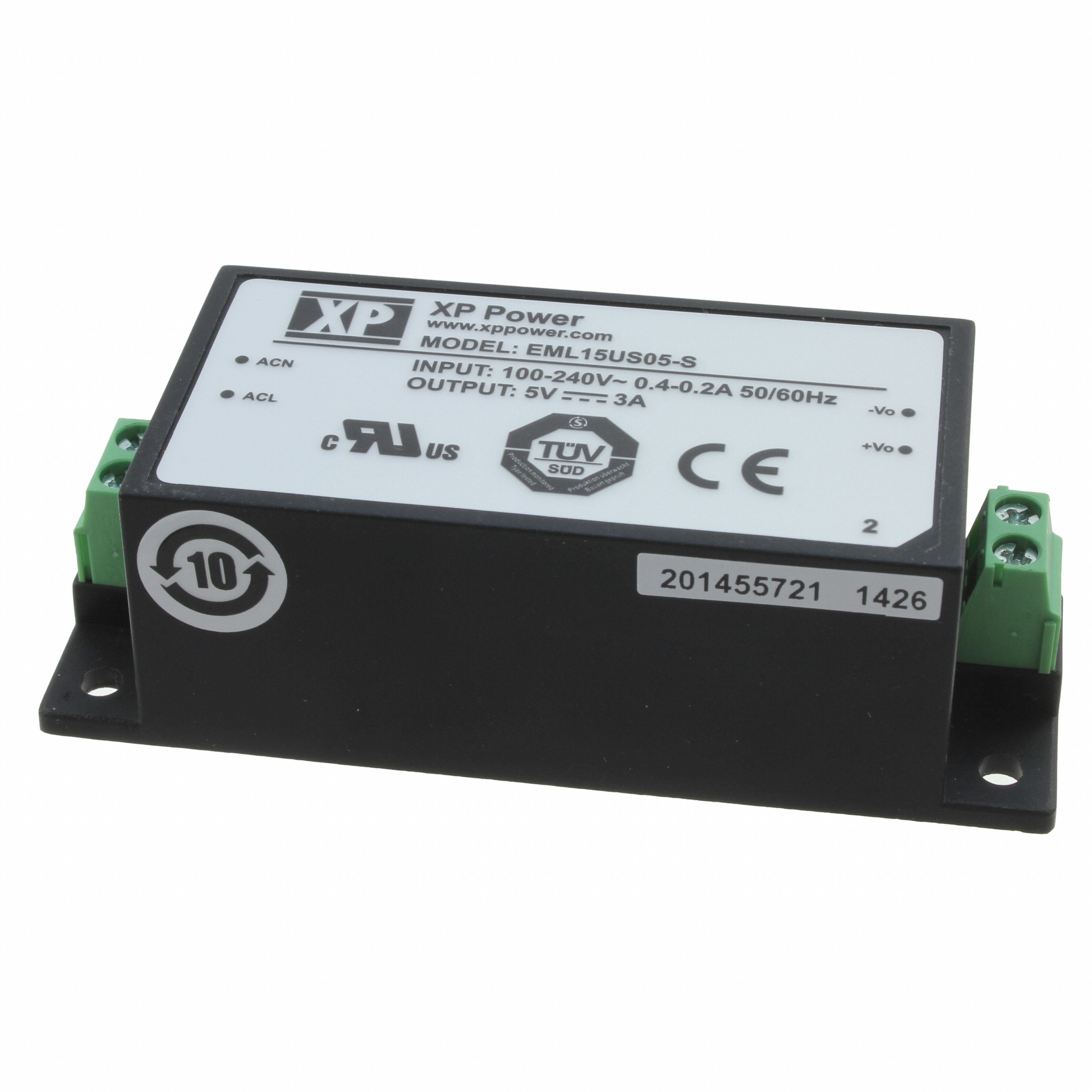

XP Power EML15US05-S	5 V	Adjustable Output DC Input Capable Universal Input	3 A	78 %	15 W	70 °C	-20 °C	4000 V	1.36 "	1.04 in	34.5 mm	75 mm	26.4 mm	2.95 "	1	Open Frame	Chassis Mount	Medical
XP Power EML15US15-S	15 V	Adjustable Output DC Input Capable Universal Input	1 A	80 %	15 W	70 °C	-20 °C	4000 V	1.36 "	1.04 in	34.5 mm	75 mm	26.4 mm	2.95 "	1	Open Frame	Chassis Mount	Medical

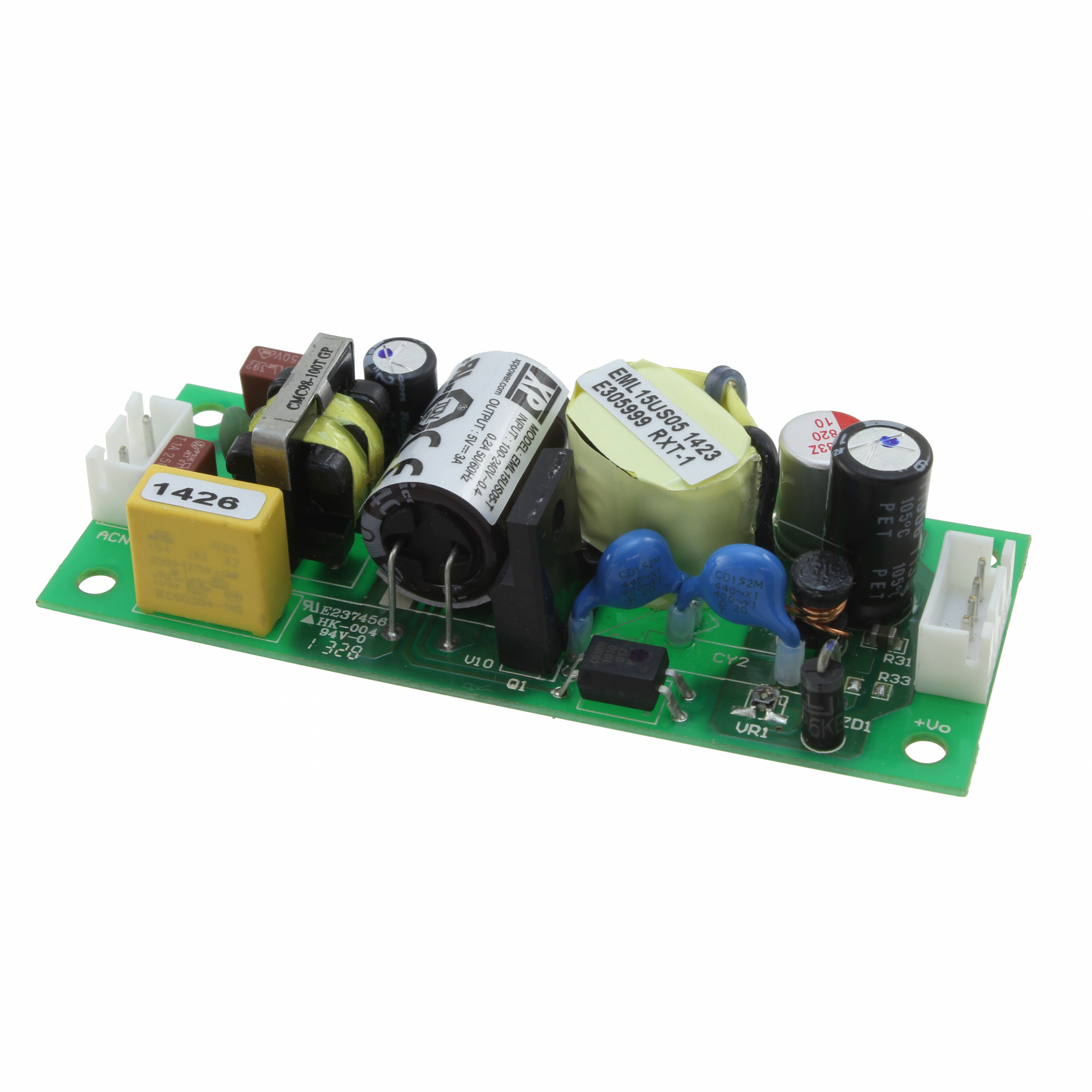

XP Power EML15US15-T	15 V	Adjustable Output DC Input Capable Universal Input	1 A	80 %	15 W	70 °C	-20 °C	4000 V	1.25 in	0.78 in	31.7 mm	78.7 mm	20 mm	3.1 in	1	Open Frame	Chassis Mount	Medical
XP Power EML15US24-T	24 V	Adjustable Output DC Input Capable Universal Input	630 mA		15 W	70 °C	-20 °C	4000 V	1.25 in	0.78 in	31.7 mm	78.7 mm	20 mm	3.1 in	1	Open Frame	Chassis Mount	Medical
XP Power EML15US05-P	5 V	Universal Input		78 %	15 W	70 °C	-20 °C		1.21 in	0.96 in	30.7 mm	62 mm	24.4 mm	2.44 "	1	Open Frame	Through Hole	Medical	0.07 lb	31.75 g	±1%	0.5 %	3 A	CE cULus TUV	4-DIP Module	60601-1
XP Power EML15US09-S	9 V	Adjustable Output DC Input Capable Universal Input	1.67 A	80 %	15 W	70 °C	-20 °C	4000 V	1.36 "	1.04 in	34.5 mm	75 mm	26.4 mm	2.95 "	1	Open Frame	Chassis Mount	Medical

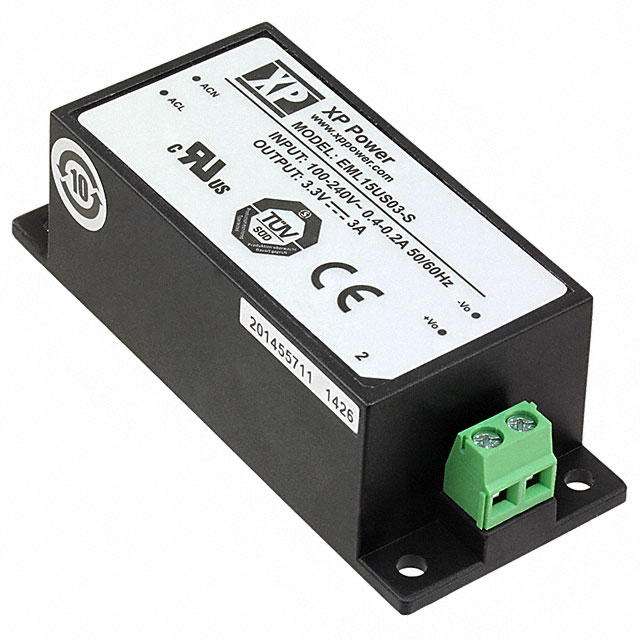

XP Power EML15US03-S	3.3 V	Adjustable Output DC Input Capable Universal Input	3 A	75 %	10 W	70 °C	-20 °C	4000 V	1.36 "	1.04 in	34.5 mm	75 mm	26.4 mm	2.95 "	1	Open Frame	Chassis Mount	Medical
XP Power EML15US36-E		Universal Input			15 W	70 °C	-20 °C		1.31 "	0.96 in	33.3 mm	65 mm	24.4 mm	2.56 in	1	Enclosed	Through Hole	Medical					420 mA	CE cULus TUV	4-DIP Module	60601-1	36 V
XP Power EML15US36-S		Adjustable Output DC Input Capable Universal Input	420 mA		15 W	70 °C	-20 °C	4000 V	1.36 "	1.04 in	34.5 mm	75 mm	26.4 mm	2.95 "	1	Open Frame	Chassis Mount	Medical									36 V
XP Power EML15US12-S	12 V	Adjustable Output DC Input Capable Universal Input	1.25 A	80 %	15 W	70 °C	-20 °C	4000 V	1.36 "	1.04 in	34.5 mm	84 mm	26.4 mm	3.3 "	1	Enclosed	Chassis Mount	Medical
