45210 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE RIGHT ANGLE

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Mounting Type	Insulation Color	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Material	Material Flammability Rating	Fastening Type	Contact Length - Post	Contact Length - Post	Connector Type	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Insulation Material	Voltage Rating	Style	Number of Positions Loaded	Features	Contact Shape	Insulation Height	Insulation Height	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

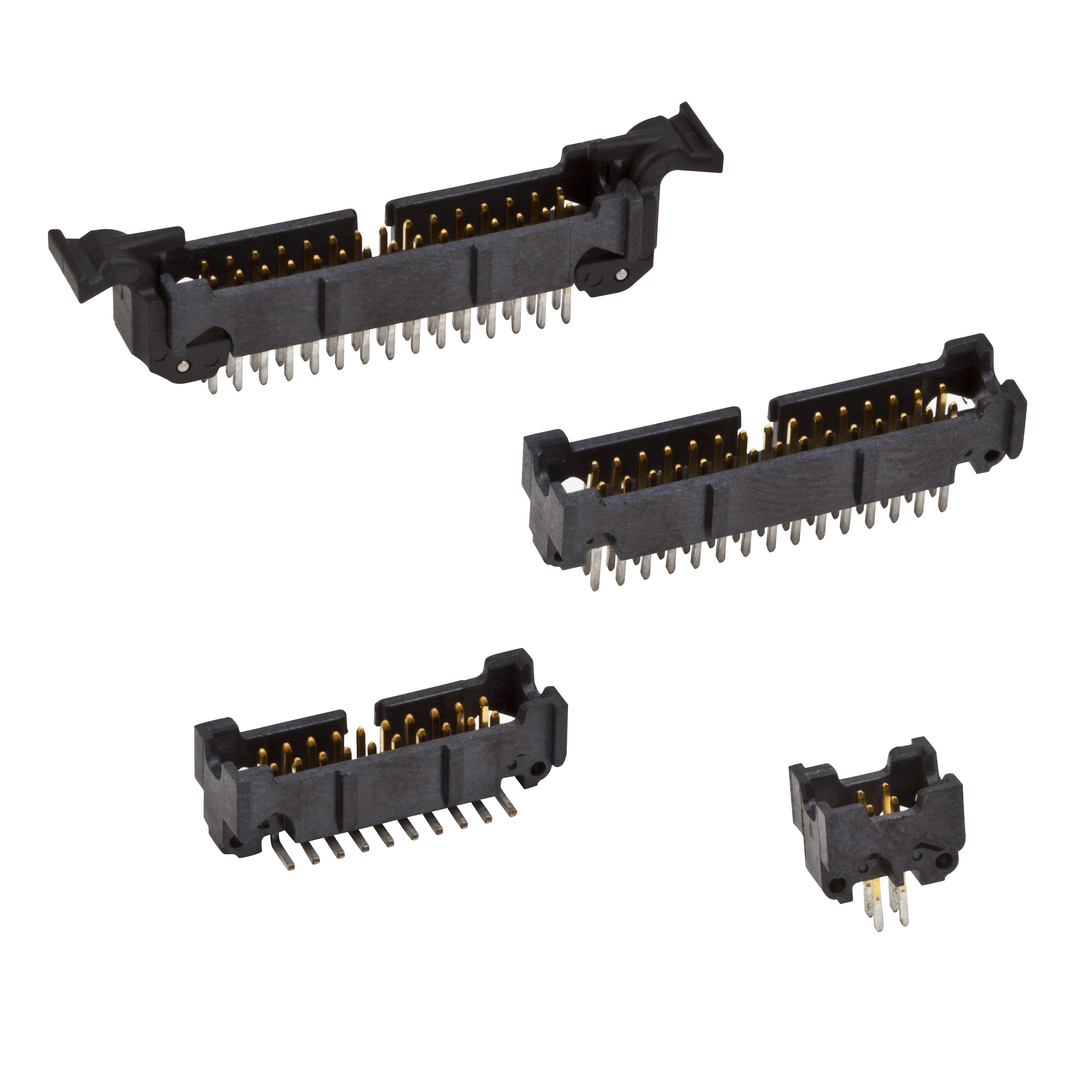

3M Electronic Specialty 45210-520200	2.54 µm	100 µin	2	Right Angle Through Hole	Black	Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Latch Lock/Eject Hooks	2.4 mm	0.094 in	Header	Solder	0.098 in	2.5 mm	Flash	Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC 125 VAC	Board to Cable/Wire	All	Keying Slot	Square	0.21 in	5.33 mm
3M Electronic Specialty 45210-620200	2.54 µm	100 µin	2	Through Hole		Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Latch Lock/Eject Hooks	2.4 mm	0.094 in	Header	Solder			Flash	Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC	Board to Cable/Wire	All	Keying Slot	Square	0.222 in	5.65 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M Electronic Specialty 45210-620230	5.08 µm	200 µin	2	Through Hole		Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Latch Lock/Eject Hooks	2.4 mm	0.094 in	Header	Solder				Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC	Board to Cable/Wire	All	Keying Slot	Square	0.222 in	5.65 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	0.76 Ám	30 Áin
3M Electronic Specialty 45210-500230	5.08 µm	200 µin	2	Right Angle Through Hole		Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Push-Pull	2.4 mm	0.094 in	Header	Solder				Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC	Board to Cable/Wire	All	Keying Slot	Square	0.21 in	5.33 mm		0.76 Ám	30 Áin
3M Electronic Specialty 45210-220230	5.08 µm	200 µin	2	Surface Mount		Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Latch Lock/Eject Hooks			Header	Solder				Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC	Board to Cable/Wire	All	Keying Slot Pick and Place	Square	0.222 in	5.65 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	0.76 Ám	30 Áin
3M Electronic Specialty 45210-200230	5.08 µm	200 µin	2	Surface Mount		Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Push-Pull			Header	Solder				Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC	Board to Cable/Wire	All	Keying Slot Pick and Place	Square	0.222 in	5.65 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	0.76 Ám	30 Áin
3M Electronic Specialty 45210-600230	5.08 µm	200 µin	2	Through Hole		Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Push-Pull	2.4 mm	0.094 in	Header	Solder				Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC	Board to Cable/Wire	All	Keying Slot	Square	0.222 in	5.65 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm	0.76 Ám	30 Áin
3M Electronic Specialty 45210-600200	2.54 µm	100 µin	2	Through Hole		Tin	0.05 in	1.27 mm	Gold	10	-65 ░C	125 °C	1.27 mm	0.05 in	Copper Alloy	UL94 V-0	Push-Pull	2.4 mm	0.094 in	Header	Solder			Flash	Shrouded - 4 Wall	Male Pin	Liquid Crystal Polymer (LCP)	125 VDC	Board to Cable/Wire	All	Keying Slot	Square	0.222 in	5.65 mm	5.84 mm 6.6 mm 7.21 mm 8.13 mm
