960108 Series

Catalog

CONN RCPT 8POS 0.1 GOLD SMD R/A

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish - Post	Number of Rows	Mounting Type	Number of Positions	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insulation Color	Connector Type	Contact Finish Thickness - Mating	Number of Positions Loaded	Material Flammability Rating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height	Fastening Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post
3M Electronic Specialty 960108-8100-AR-TP	Square	Copper Alloy	Thermoplastic	40 Áin	1.02 Ám	Female Socket	Tin	1	Right Angle Surface Mount	8	Solder	105 ░C	-25 °C	1000 VDC	Black	Receptacle	Flash	All	UL94 V-0	2 A	0.1 "	2.54 mm	0.126 "	3.2 mm	Push-Pull	Gold

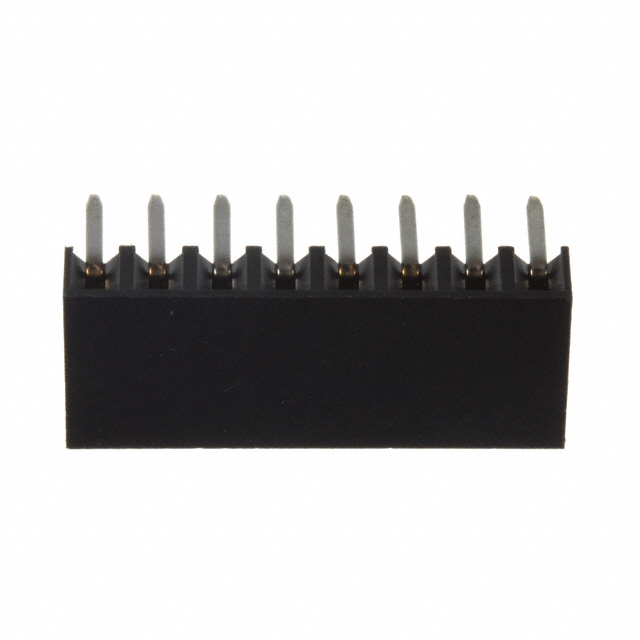

3M Electronic Specialty 960108-7102-AR	Square	Copper Alloy	Thermoplastic	40 Áin	1.02 Ám	Female Socket	Tin	1	Right Angle Through Hole	8	Solder	125 °C	-25 °C	1000 VDC	Black	Receptacle	Flash	All	UL94 V-0	2 A	0.1 "	2.54 mm	0.126 "	3.2 mm	Push-Pull	Gold	0.13 "	3.3 mm
