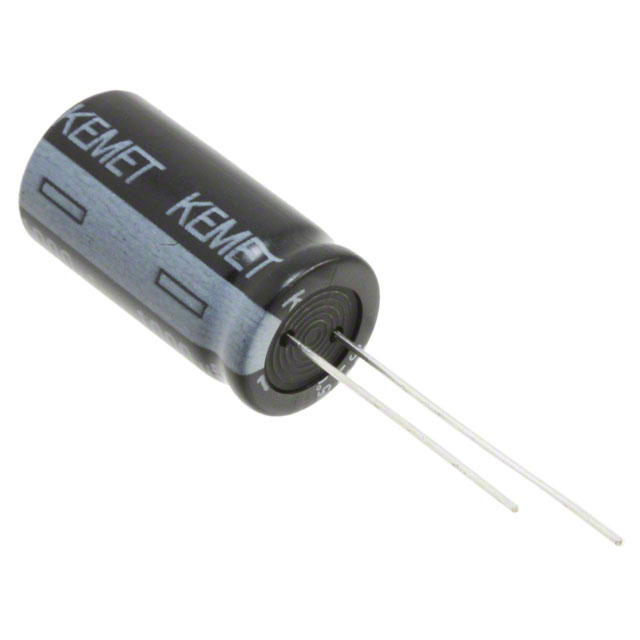

ESY108M Series
Manufacturer: KEMET
Beta
⌘K
ELECTROLYTIC CAPACITOR, 1000 ΜF, 50 V, ± 20%, PC PIN, 5000 HOURS @ 105°C, POLAR
| Part | Ripple Current @ High Frequency | Package / Case | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Lead Spacing | Lead Spacing | Voltage - Rated | Lifetime @ Temp. | Ripple Current @ Low Frequency | Tolerance | Capacitance | Mounting Type | Applications | Impedance | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 3.35 A | Can Radial | Polar | -40 C | 105 ░C | 0.295 in | 7.5 mm | 50 VDC | 5000 Hrs | 2.5125 A | 20 % | 1000 µF | Through Hole | General Purpose | 21 mOhms | 0.63 in | 16 mm | 1.339 in | 34 mm | 21 mOhm | ||
 KEMET | 2.77 A | Can Radial | Polar | -40 C | 105 ░C | 0.197 " | 5 mm | 35 V | 5000 Hrs | 2.0775 A | 20 % | 1000 µF | Through Hole | General Purpose | 18 mOhms | 0.512 in | 27 mm | 18 mOhm | 1.063 in | 13 mm |
