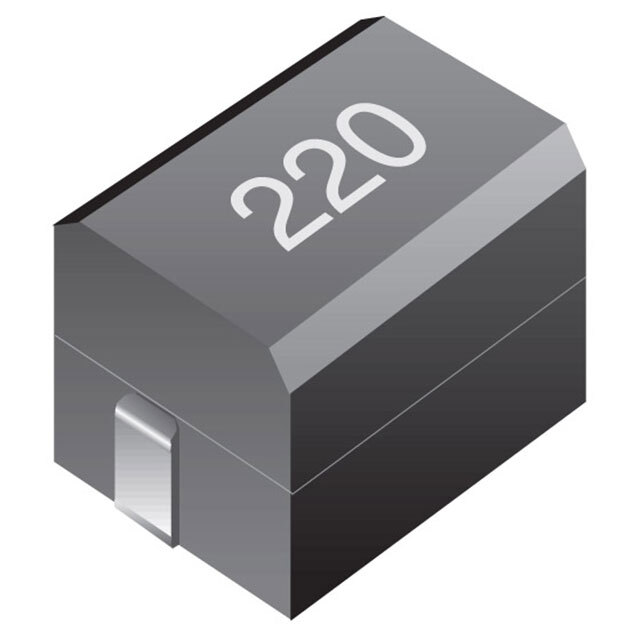

CC453232A Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTORS - SMD IND,4.5X3.2X3.2MM,470UH±10%,0.14A
| Part | Ratings | Q @ Freq | Current - Saturation (Isat) | Operating Temperature [Min] | Operating Temperature [Max] | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Shielding | Mounting Type | DC Resistance (DCR) [Max] | Package / Case | Tolerance | Inductance | Height - Seated (Max) [Max] | Height - Seated (Max) | Current Rating (Amps) | Material - Core | Frequency - Self Resonant | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | AEC-Q200 | 30 796 kHz | 120 mA | -40 C | 150 °C | 0.796 MHz | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | Unshielded | Surface Mount | 16 Ohm | 1812 (4532 Metric) | 10 % | 470 µH | 0.134 in | 3.4 mm | 140 mA | Ferrite | 2.7 MHz | |
Bourns Inc. | AEC-Q200 | 7.96 MHz 10 | 1.05 A | -40 C | 150 °C | 7.96 MHz | 0.177 in | 4.5 mm | 3.2 mm | 0.126 in | Unshielded | Surface Mount | 1812 (4532 Metric) | 10 % | 4.7 ÁH | 0.134 in | 3.4 mm | 1.3 A | Ferrite | 30 MHz | 260 mOhm |
