CGS 3550 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

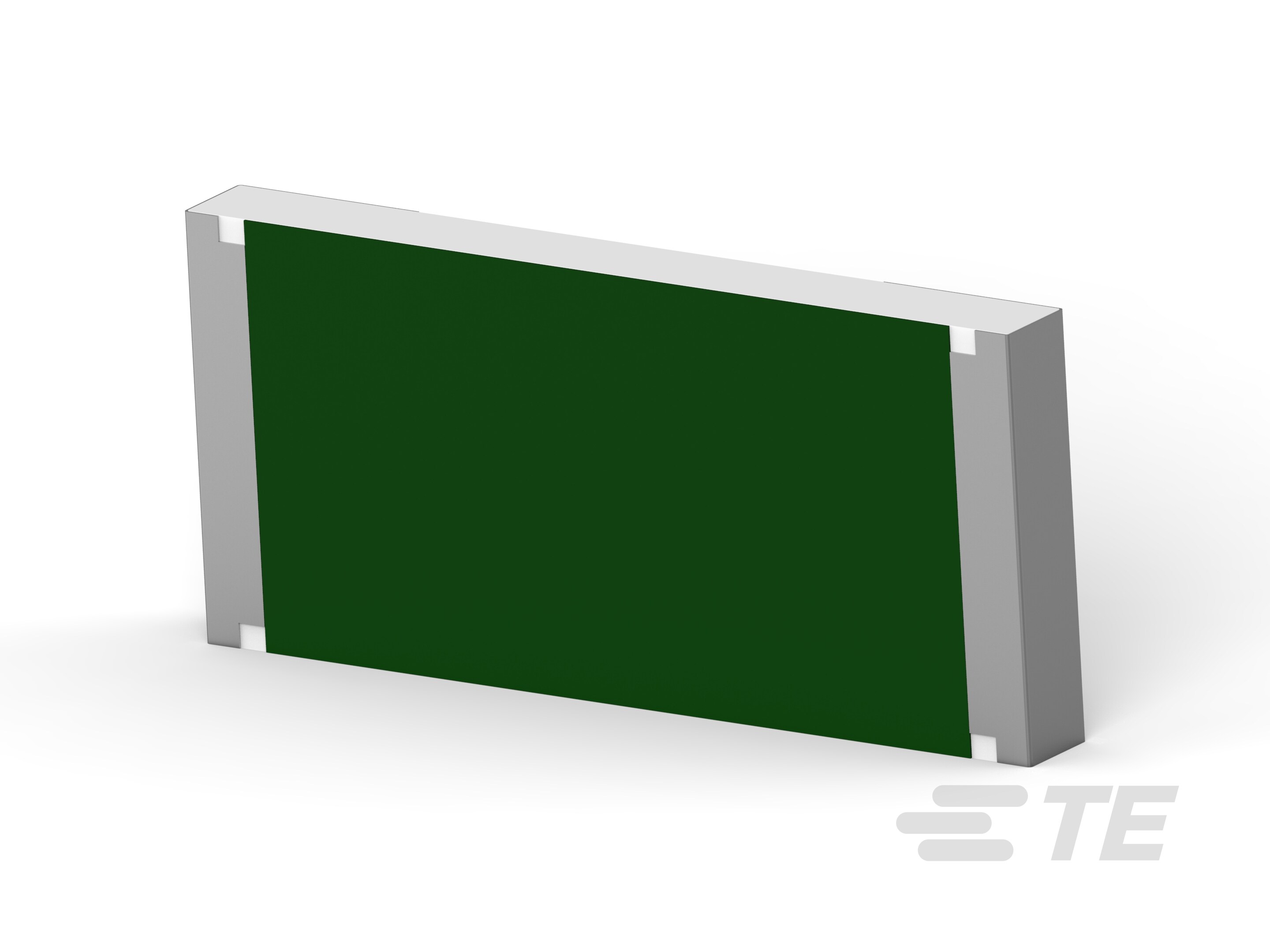

SMD CHIP RESISTOR, 2.2 KOHM, ± 1%, 5 W, 4320 [11050 METRIC], THICK FILM, HIGH POWER
| Part | Power (Watts) | Resistance | Package / Case | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Composition | Number of Terminations [custom] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 5 W | 2200 Ohms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
 TE Connectivity AMP Connectors | 5 W | 620 Ohms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
TE Connectivity AMP Connectors | 5 W | 200 Ohms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
 TE Connectivity AMP Connectors | 5 W | 390 Ohms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
TE Connectivity AMP Connectors | 5 W | 270 Ohms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
TE Connectivity AMP Connectors | 5 W | 56 Ohms | Nonstandard | 5 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
 TE Connectivity AMP Connectors | 5 W | 360 kOhms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
TE Connectivity AMP Connectors | 5 W | 3.3 MOhms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
TE Connectivity AMP Connectors | 5 W | 270 Ohms | Nonstandard | 5 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
TE Connectivity AMP Connectors | 5 W | 12 Ohms | Nonstandard | 1 % | 11 mm | 0.197 " | 0.433 in | 5 mm | 155 C | -55 C | Thick Film | 2 | 1.2 mm | 0.047 " | 100 ppm/°C |
