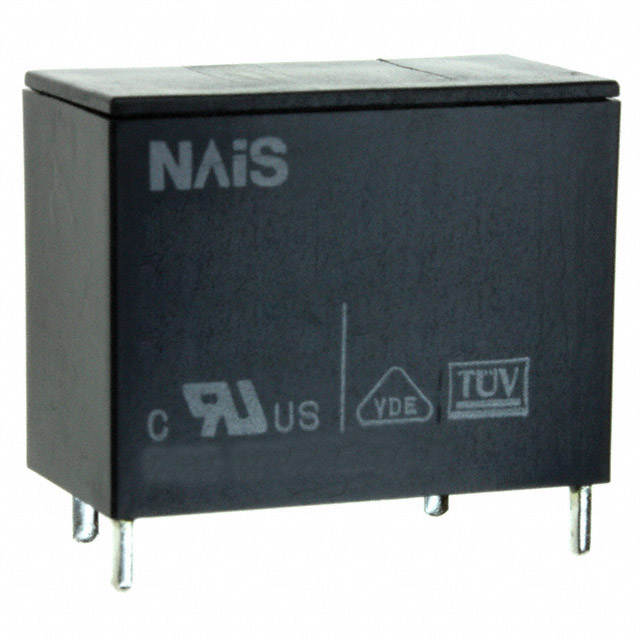

ALF1P1 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
POWER RELAY, SPST-NO, 12 VDC, 25 A, LF(ALF) SERIES, THROUGH HOLE, NON LATCHING
| Part | Coil Resistance | Approval Agency | Mounting Type | Release Time | Coil Type | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Voltage | Contact Form | Contact Material | Must Operate Voltage | Operate Time | Relay Type | Switching Voltage [Max] | Load - Max Switching [Max] | Must Release Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 160 Ohms | cURus VDE | Through Hole | 15 ms | Non Latching | 20 A | 60 °C | -40 C | PC Pin | 12 VDC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | 8.4 VDC | 20 ms | General Purpose | 250 VAC | 5000 VA | 1.2 VDC | 0.075 A |
 Panasonic Electronic Components | 360 Ohms | cURus VDE | Through Hole | 15 ms | Non Latching | 20 A | 60 °C | -40 C | PC Pin | 18 VDC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | 12.6 VDC | 20 ms | General Purpose | 250 VAC | 5000 VA | 1.8 VDC | 50 mA |
