0682-0 Series

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Socket Depth	Socket Depth	Contact Finish	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]

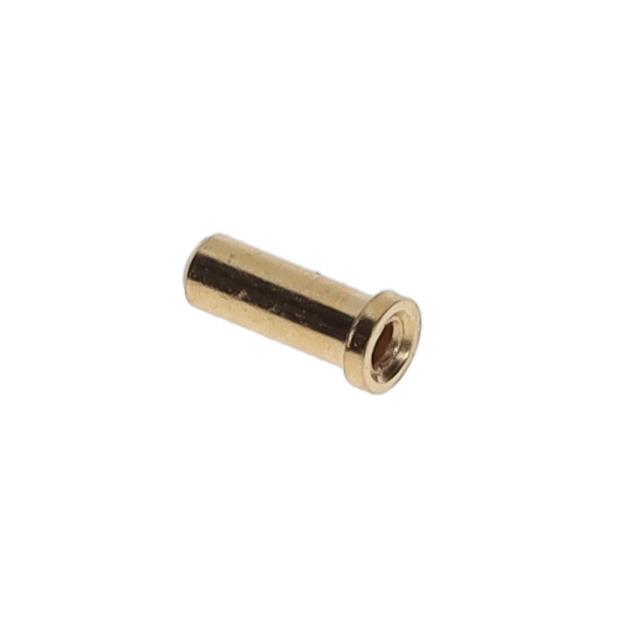

Mill-Max Manufacturing Corp. 0682-0-15-15-32-27-10-0	-55 C	125 °C	Solder	0.166 in	4.22 mm	30 Áin	0.76 Ám	Beryllium Copper	0.147 in	3.73 mm	Gold	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	1.42 mm	0.056 "	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0682-0-15-15-32-14-10-0	-55 C	125 °C	Solder	0.166 in	4.22 mm	10 Áin	0.25 Ám	Beryllium Copper	0.147 in	3.73 mm	Gold	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	1.42 mm	0.056 "	0.072 "	1.83 mm

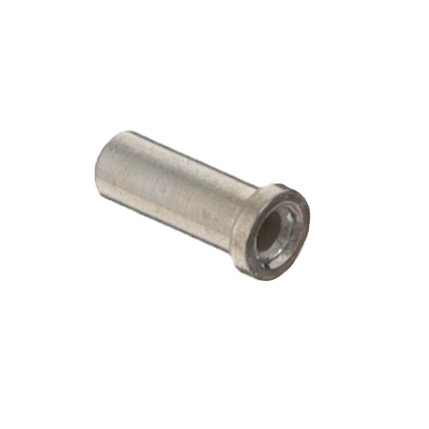

Mill-Max Manufacturing Corp. 0682-0-15-01-32-02-10-0	-55 C	125 °C	Solder	0.166 in	4.22 mm	100 µin	2.54 µm	Beryllium Copper	0.147 in	3.73 mm	Tin-Lead	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	1.42 mm	0.056 "	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0682-0-15-80-32-14-10-0	-55 C	125 °C	Solder	0.166 in	4.22 mm	10 Áin	0.25 Ám	Beryllium Copper	0.147 in	3.73 mm	Gold	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	1.42 mm	0.056 "	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0682-0-15-80-32-27-10-0	-55 C	125 °C	Solder	0.166 in	4.22 mm	30 Áin	0.76 Ám	Beryllium Copper	0.147 in	3.73 mm	Gold	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	1.42 mm	0.056 "	0.072 "	1.83 mm
