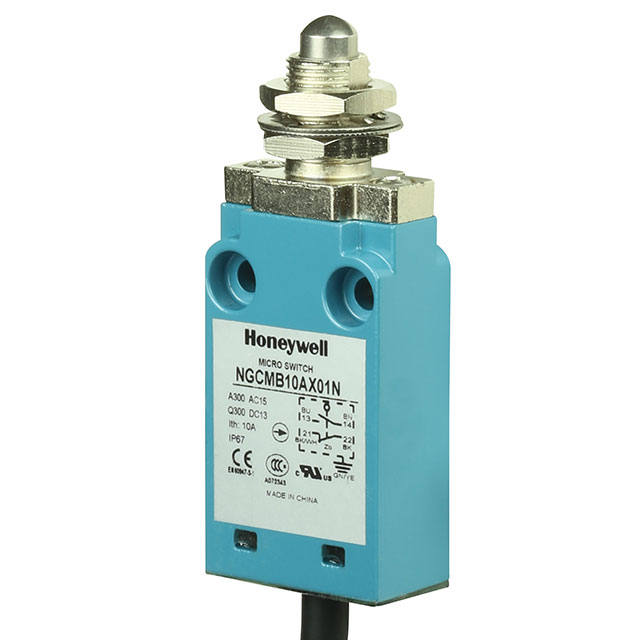

NGCMB10 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH LIMIT
| Part | Voltage Rating - AC | Mechanical Life | Actuator Type | Ingress Protection | Switch Function | Overtravel | Overtravel | Release Force | Differential Travel | Differential Travel | Voltage Rating - DC | Electrical Life | Pretravel | Pretravel | Operating Force | Circuit | Operating Position | Operating Position | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||
Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||
 Honeywell Sensing and Productivity Solutions | 120 V | 5000000 Cycles | Round (Pin Plunger) | IP67 - Dust Tight Waterproof | Off-Mom On-Mom | 0.193 in | 4.9 mm | 306 gf | 0.047 in | 1.2 mm | 125 VDC | 500000 Cycles | 2.1 mm | 0.083 in | 1122 gf | DPST-NO/NC | 0.083 in | 2.1 mm | Cable Leads | -25 °C | 75 ░C | 6 A 550 mA |
