ESP32-C6 Series
Manufacturer: Espressif Systems
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC RF TXRX BLE 32QFN
| Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Memory Size (Flash) | Memory Type | RF Family/Standard | Sensitivity | Frequency (Max) | Frequency (Min) | GPIO Count | Package Width | Package Name | Package Length | Current - Receiving (Min) | Current - Receiving (Max) | Data Rate (Max) | Modulation | Mounting Type | Type | Power - Output | Protocol | Current - Transmitting (Max) | Current - Transmitting (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Serial Interfaces | Package / Case | Antenna Type | Frequency | Utilized IC / Part | Supplied Contents | For Use With/Related Products | Contents | Data Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

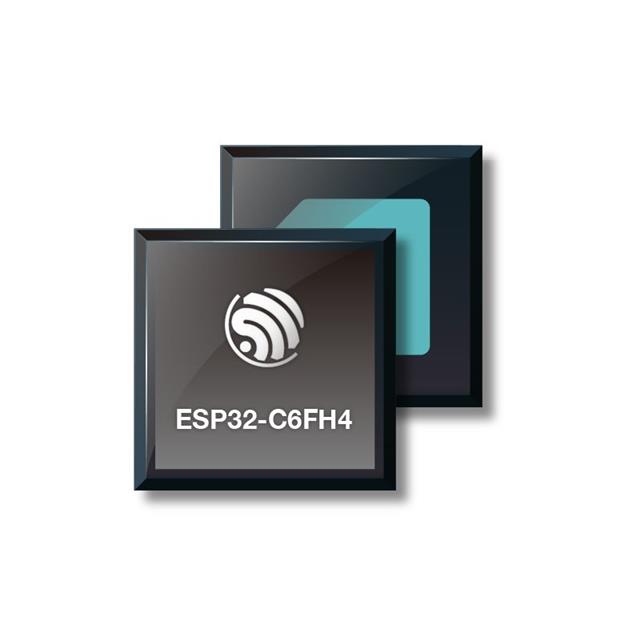

 Espressif Systems | 3.6 V | 3 V | 4 MB | Flash | Bluetooth WiFi | -106 dBm | 2.484 GHz | 2.412 GHz | 22 | 5 mm | 32-QFN | 5 mm | 71 mA | 82 mA | 250 kBaud | 16-QAM CCK DSSS O-QPSK OFDM | Surface Mount | TxRx + MCU TxRx Only | 21 dBm | Bluetooth v5.0 Thread Zigbee® | 354 mA | 82 mA | 105 °C | -40 °C | GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB | 32-VFQFN Exposed Pad | |||||||
 Espressif Systems | 4 MB | Flash | 802.15.4 Bluetooth WiFi | Surface Mount | Bluetooth v5.0 Zigbee® | GPIO I2C I2S PWM SPI UART | 28-SMD Module | PCB Trace | 2.4 GHz | ESP32-C6 | |||||||||||||||||||||||
 Espressif Systems | 802.11 b/g/n/ax (Wi-Fi 802.15.4 (Thread Bluetooth® 5.x (BLE) Transceiver WiFi WLAN) Zigbee®) | 2.4 GHz | ESP32-C6-WROOM-1 | Board(s) | ESP32-C6-WROOM-1 | Board | |||||||||||||||||||||||||||
 Espressif Systems | 3.6 V | 3 V | Bluetooth WiFi | -106 dBm | 2.484 GHz | 2.412 GHz | 30 | 5 mm | 40-QFN | 5 mm | 71 mA | 82 mA | 250 kBaud | 16-QAM CCK DSSS O-QPSK OFDM | Surface Mount | TxRx + MCU TxRx Only | 21 dBm | Bluetooth v5.0 Thread Zigbee® | 354 mA | 82 mA | 105 °C | -40 °C | GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB | 40-VFQFN Exposed Pad | |||||||||

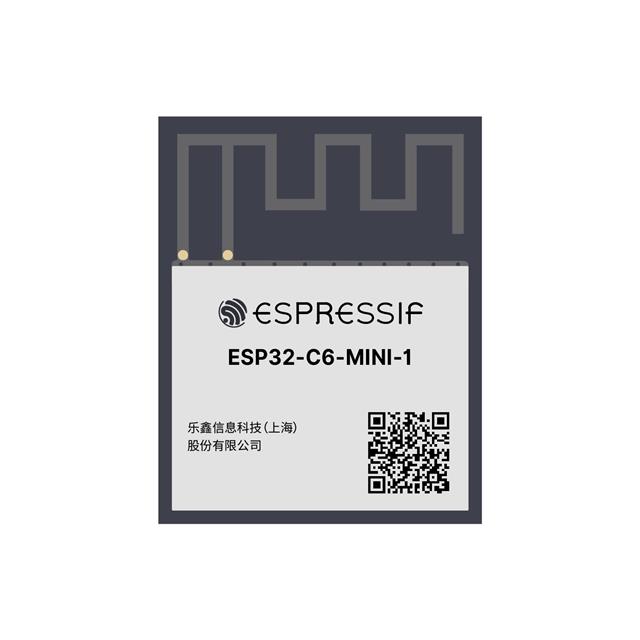

Espressif Systems | Bluetooth® 5.x (BLE) Transceiver | 2.4 GHz | ESP32-C6-MINI-1 | Board(s) | ESP32-C6-MINI-1 | Board | |||||||||||||||||||||||||||
 Espressif Systems | 3.6 V | 3 V | 4 MB | Flash | 802.15.4 Bluetooth WiFi | -106 dBm | 71 mA | 82 mA | 16-QAM CCK DSSS O-QPSK OFDM | Surface Mount | 21 dBm | 802.11ax Bluetooth v5.0 Zigbee® | 354 mA | 82 mA | 105 °C | -40 °C | GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB | 53-SMD Module | PCB Trace | 2.4 GHz | 150 MHz | ||||||||||||
Espressif Systems | 3.6 V | 3 V | 4 MB | Flash | 802.15.4 Bluetooth WiFi | -106 dBm | 71 mA | 82 mA | 16-QAM CCK DSSS O-QPSK OFDM | Surface Mount | 21 dBm | 802.11ax Bluetooth v5.0 Zigbee® | 354 mA | 82 mA | 85 °C | -40 °C | GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB | 53-SMD Module | PCB Trace | 2.4 GHz | 150 MHz |
