SE102 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

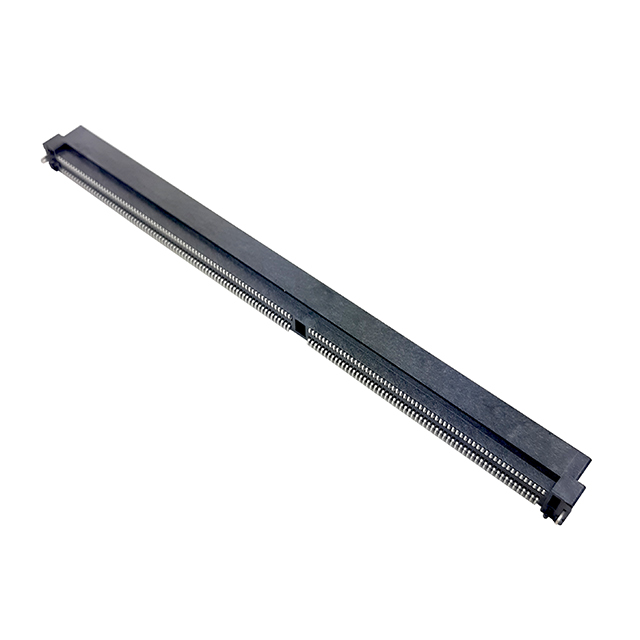

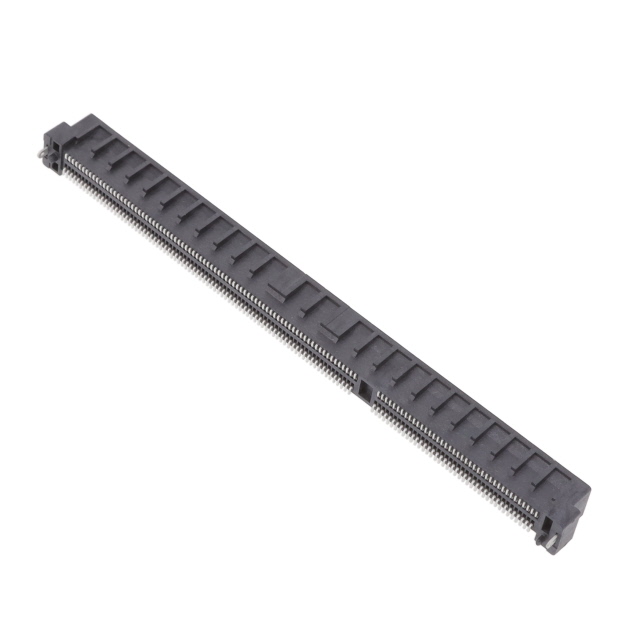

CONN EDGE DUAL FMALE 240P 0.026
| Part | Material - Insulation | Color | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Contact Type | Pitch | Pitch | Gender | Contact Material | Number of Positions [custom] | Card Type | Termination | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Thermoplastic | Black | Dual | -55 C | 105 ░C | Board Guide Board Lock | 30 Áin | 0.76 Ám | 2 | Surface Mount | Cantilever | 0.65 mm | 0.026 in | Female | Copper Alloy | 240 | Non Specified - Dual Edge | Solder | Gold | |||
 Amphenol ICC (FCI) | Thermoplastic | Black | Dual | -55 C | 105 ░C | Board Guide Board Lock | 30 Áin | 0.76 Ám | 2 | Surface Mount | Cantilever | 0.65 mm | 0.026 in | Female | Copper Alloy | Non Specified - Dual Edge | Solder | Gold | 60 | 80 | 280 |
