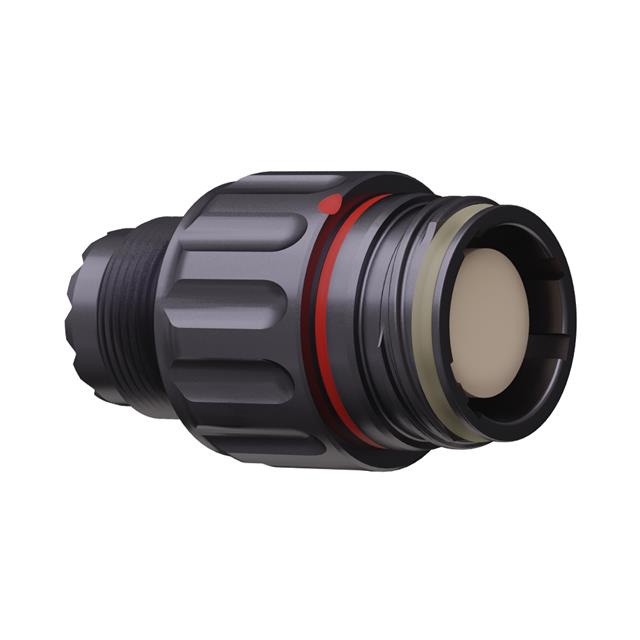

KBTAAT0-E Series
Manufacturer: ODU
Beta
⌘K
ODU AMC SERIES T IN-LINE RECEPTA
| Part | Termination | Contact Material | Shell Material | Primary Material | Contact Finish - Mating | Number of Positions | Shell Finish | Fastening Type | Features | Voltage Rating | Orientation | Ingress Protection | Current Rating (Amps) | Shielding | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Shell Size - Insert | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Crimp | Copper Alloy | Aluminum | Metal | Gold | 8 | Tin Nickel | Push-Pull Threaded | Backshell Coupling Nut | 50 V | A | IP68 IP69K | 5 A | Shielded | UL94 V-0 | -65 ░C | 175 °C | Polyetheretherketone (PEEK) | 9 | Free Hanging (In-Line) | 50 µin | 1.27 µm | Silver | Receptacle Female Sockets | |
Crimp | Copper Alloy | Aluminum | Metal | Gold | 10 | Tin Nickel | Push-Pull Threaded | Backshell Coupling Nut | 50 V | A | IP68 IP69K | 5 A | Shielded | UL94 V-0 | -65 ░C | 175 °C | Polyetheretherketone (PEEK) | 9 | Free Hanging (In-Line) | 50 µin | 1.27 µm | Silver | Receptacle Female Sockets |
