OSTTJ16 Series

Catalog

TERM BLOCK PLUG 16POS STR 5.08MM

Part	Contact Material	Wire Strip Length [Min]	Wire Strip Length [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Torque - Screw	Torque - Screw	Housing Material	Material Flammability Rating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination Style	Number of Positions	Contact Mating Finish	Positions Per Level	Voltage - IEC	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - UL	Pitch	Pitch	Number of Levels	Type	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm²
On Shore Technology Inc. OSTTJ165153	Brass	7 mm	8 mm	0.34 mm˛	2.5 mm˛	0.56 Nm	5 Lb-In	Brass	UL94 V-0	12 AWG	24 AWG	-30 ░C	105 ░C	Green	Screw	16	Tin	16	300 V	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	300 V	5.08 mm	0.2 in	1	Plug Female Sockets
On Shore Technology Inc. OSTTJ1611520	Brass	6 mm	7 mm			0.28 Nm	2.5 Lb-In	Brass	UL94 V-0	16 AWG	26 AWG	-30 ░C	105 ░C		Screw	16		16		Free Hanging (In-Line)			300 V	3.5 mm	0.138 "	1	Plug Female Sockets

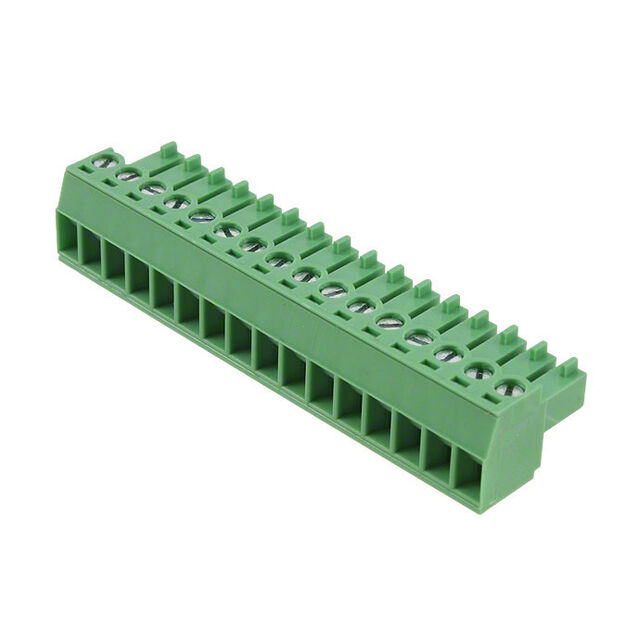

On Shore Technology Inc. OSTTJ1631530	Brass	6 mm	7 mm			0.28 Nm	2.5 Lb-In	Brass		16 AWG	26 AWG	-40 C	115 °C	Green	Screw	16		16		Free Hanging (In-Line)			300 V	3.81 mm	0.15 in	1	Plug Female Sockets	1.5 mm˛	1.5 mm²
On Shore Technology Inc. OSTTJ160150	Brass	7 mm	8 mm			0.56 Nm	5 Lb-In	Brass	UL94 V-0	12 AWG	24 AWG	-30 ░C	105 ░C		Screw	16		16		Free Hanging (In-Line)			300 V	7.62 mm	0.3 in	1	Plug Female Sockets
On Shore Technology Inc. OSTTJ1611530	Brass	6 mm	7 mm			0.28 Nm	2.5 Lb-In	Brass		16 AWG	26 AWG	-30 ░C	105 ░C		Screw	16		16		Free Hanging (In-Line)			300 V	3.5 mm	0.138 "	1	Plug Female Sockets
On Shore Technology Inc. OSTTJ165152	Brass	7 mm	8 mm			0.56 Nm	5 Lb-In	Brass	UL94 V-0	12 AWG	24 AWG	-30 ░C	105 ░C	Green	Screw	16		16		Free Hanging (In-Line)	0.34 mm²	2.5 mm²	300 V	5.08 mm	0.2 in	1	Plug Female Sockets
On Shore Technology Inc. OSTTJ167152	Brass	7 mm	8 mm			0.56 Nm	5 Lb-In	Brass	UL94 V-0	12 AWG	24 AWG	-30 ░C	105 ░C	Green	Screw	16		16		Free Hanging (In-Line)	0.34 mm²	2.5 mm²	300 V	5 mm	0.197 in	1	Plug Female Sockets
On Shore Technology Inc. OSTTJ165183								Brass		12 AWG	24 AWG	-30 ░C	105 ░C	Gray	Screw	16	Tin	16	300 V	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	300 V	5.08 mm	0.2 in	1	Plug Female Sockets
