M80-844 Series

Catalog

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Part	Color	Pitch [x]	Pitch [x]	Number of Rows [custom]	Fastening Type	Contact Type	Number of Positions	Wire Type	Connector Type	Cable Termination	Row Spacing	Row Spacing	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish
Harwin Inc. M80-8442042	Black	0.079 in	2 mm	2	Locking Ramp	Female Socket	20	Discrete	Receptacle	Crimp	2 mm	0.079 in	24 AWG	28 AWG	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold

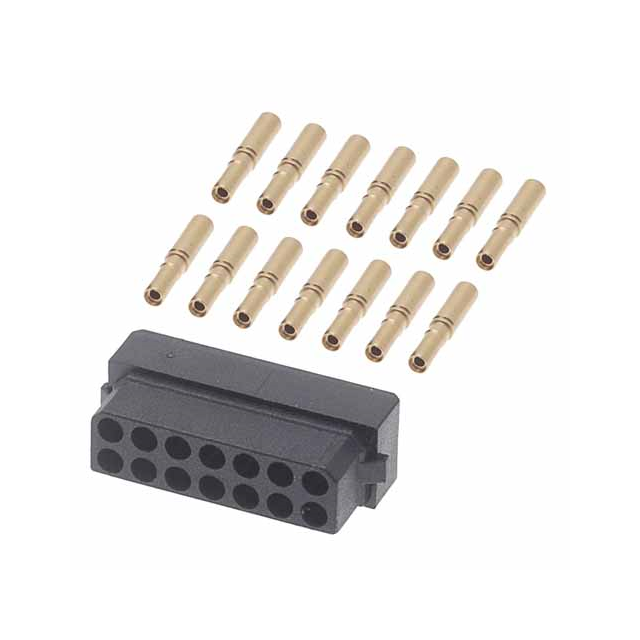

Harwin Inc. M80-8441445	Black	0.079 in	2 mm	2	Locking Ramp	Female Socket	14	Discrete	Receptacle	Crimp	2 mm	0.079 in	24 AWG	28 AWG	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold

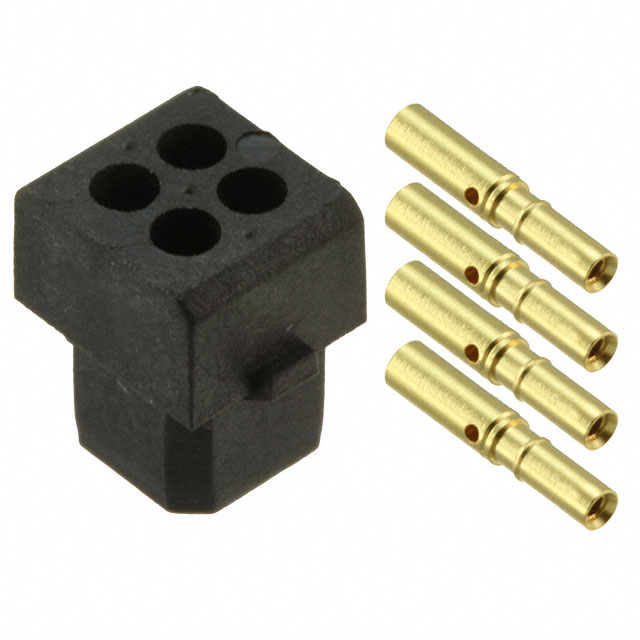

Harwin Inc. M80-8440445	Black	0.079 in	2 mm	2	Locking Ramp	Female Socket	4	Discrete	Receptacle	Crimp	2 mm	0.079 in	24 AWG	28 AWG	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold
Harwin Inc. M80-8441042	Black	0.079 in	2 mm	2	Locking Ramp	Female Socket	10	Discrete	Receptacle	Crimp	2 mm	0.079 in	24 AWG	28 AWG	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold

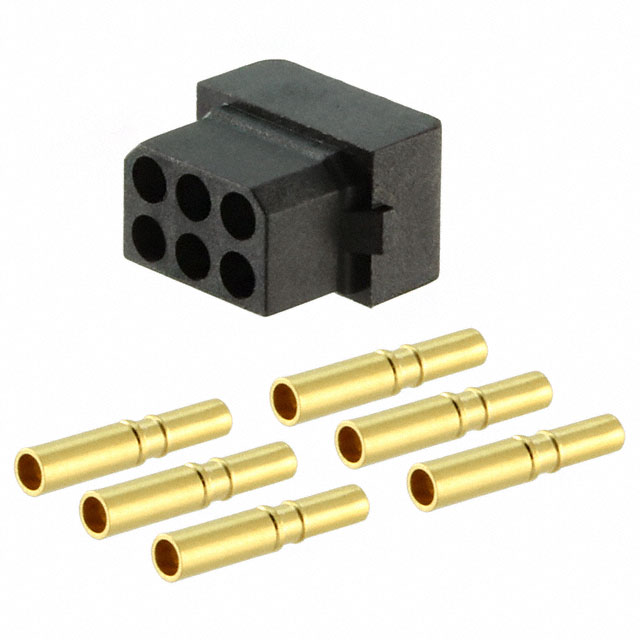

Harwin Inc. M80-8440645	Black	0.079 in	2 mm	2	Locking Ramp	Female Socket	6	Discrete	Receptacle	Crimp	2 mm	0.079 in	24 AWG	28 AWG	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold

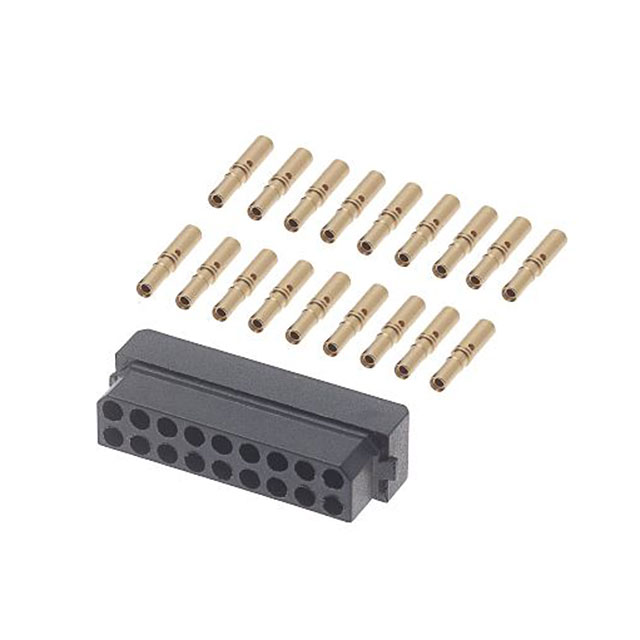

Harwin Inc. M80-8441845	Black	0.079 in	2 mm	2	Locking Ramp	Female Socket	18	Discrete	Receptacle	Crimp	2 mm	0.079 in	24 AWG	28 AWG	Free Hanging (In-Line)	0.3 Ám	11.8 Áin	Gold
