0868-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

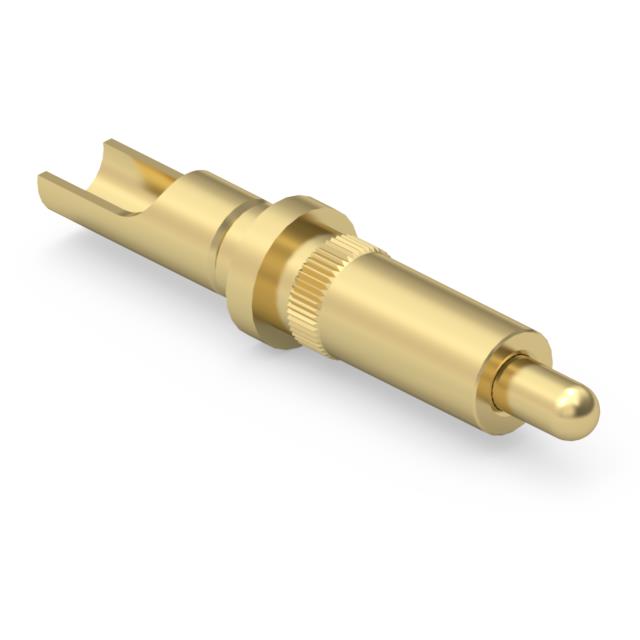

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Initial | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Operating Force - Mid Compression | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type | Features | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Minimum Working Height | Minimum Working Height | Contact Type | Mating Cycles | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.27 mm | 0.05 in | 25 gf | 0.362 in | 9.19 mm | 9.6 A | 120 gf | 3.18 mm | 0.125 in | Solder Cup Through Hole | 16 AWG | Gold | Brass Alloy | 20 µin | 0.51 µm | 6.9 mm | 0.272 in | Sleeve & Plunger (Pogo Pins) | 1000000 | 8.05 mm | 0.317 in |
