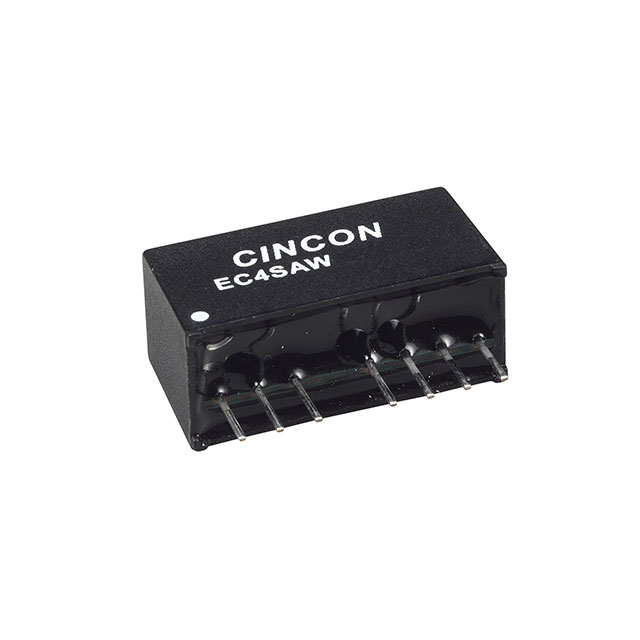

EC4SAW Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K

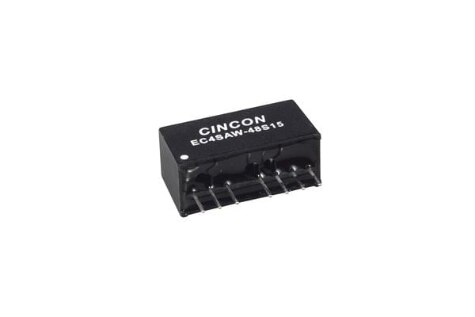

CONVERTER: DC/DC; 6W; UIN: 18÷75VDC; UOUT: 15VDC; 15V; IOUT: 400MA
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Power (Watts) | Applications | Voltage - Isolation | Features | Current - Output (Max) [Max] | Package / Case | Control Features | Voltage - Output 1 | Number of Outputs | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Type | Voltage - Input (Max) [Max] | Efficiency | Mounting Type | Voltage - Output 2 | Current - Output (Max) [Min] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 18 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 400 mA | 8-SIP Module 7 Leads | Active Low Enable | 15 V | 1 | CE | -40 °C | 85 °C | Isolated Module | 75 V | 88 % | Through Hole | |||
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 9 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 500 mA | 8-SIP Module 7 Leads | Active Low Enable | 12 V | 1 | CE | -40 °C | 85 °C | Isolated Module | 36 V | 88 % | Through Hole | |||
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 18 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 1.2 A | 8-SIP Module 7 Leads | Active Low Enable | 5 V | 1 | CE | -40 °C | 85 °C | Isolated Module | 75 V | 85 % | Through Hole | |||
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 9 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 600 mA | 8-SIP Module 7 Leads | Active Low Enable | 5 V | 2 | CE | -40 °C | 85 °C | Isolated Module | 36 V | 86 % | Through Hole | -5 V | 600 mA | |
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 9 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 8-SIP Module 7 Leads | Active Low Enable | 15 V | 2 | CE | -40 °C | 85 °C | Isolated Module | 36 V | 88 % | Through Hole | -15 V | |||
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 18 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 8-SIP Module 7 Leads | Active Low Enable | 12 V | 2 | CE | -40 °C | 85 °C | Isolated Module | 75 V | 89 % | Through Hole | -12 V | 250 mA | ||
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 9 V | 5 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 1.5 A | 8-SIP Module 7 Leads | Active Low Enable | 3.3 V | 1 | CE | -40 °C | 85 °C | Isolated Module | 36 V | Through Hole | ||||
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 9 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 8-SIP Module 7 Leads | Active Low Enable | 12 V | 2 | CE | -40 °C | 85 °C | Isolated Module | 36 V | 88 % | Through Hole | -12 V | 250 mA | ||
 Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 18 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 8-SIP Module 7 Leads | Active Low Enable | 15 V | 2 | CE | -40 °C | 85 °C | Isolated Module | 75 V | 89 % | Through Hole | -15 V | |||
Cincon Electronics Co. LTD | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm | 18 V | 6 W | ITE (Commercial) | 1.5 kV | Remote On/Off SCP | 600 mA | 8-SIP Module 7 Leads | Active Low Enable | 5 V | 2 | CE | -40 °C | 85 °C | Isolated Module | 75 V | 85 % | Through Hole | -5 V | 600 mA |
