LMZ22005 Series

5A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Catalog

5A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Part	Voltage - Input (Max) [Max]	Features	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Supplier Device Package	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency - Switching	Outputs and Type	Outputs and Type	Utilized IC / Part	Regulator Topology	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Current - Output	Main Purpose	Voltage - Output
Texas Instruments LMZ22005TZ/NOPB	20 V	UVLO	5 A	0.8 V	6 V	92 %	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	ITE (Commercial)	Surface Mount	6 V	TO-PMOD-7 Power Module	TO-PMOD-7	1	125 °C	-40 °C	Non-Isolated PoL Module
Texas Instruments LMZ22005TZE/NOPB	20 V	UVLO	5 A	0.8 V	6 V	92 %	0.4 in	9.9 mm	4.6 mm	10.2 mm	0.39 "	0.18 "	ITE (Commercial)	Surface Mount	6 V	TO-PMOD-7 Power Module	TO-PMOD-7	1	125 °C	-40 °C	Non-Isolated PoL Module

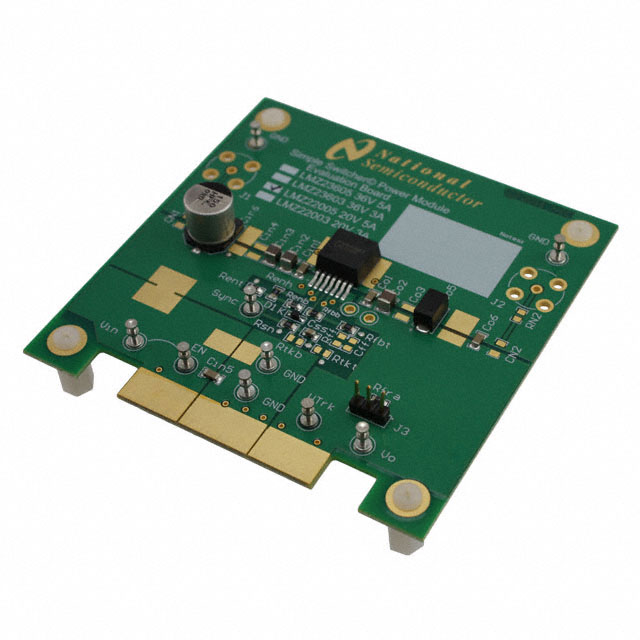

Texas Instruments LMZ22005EVAL/NOPB																						812 kHz	Non-Isolated	1	LMZ22005	Buck	Board(s)	20 V	6 V	Fully Populated	5 A	DC/DC Step Down	3.3 V

Catalog

5A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage

Key Features

• Integrated shielded inductorSimple PCB LayoutFrequency synchronization input (650kHz to 950kHz)Flexible start-up sequencing using external soft-start, tracking and precision enableProtection against inrush currents and faults such as input UVLO and output short circuitJunction temperature range –40°C to 125°CSingle exposed pad for easy mounting and manufacturingFast transient response for powering FPGAs and ASICsFully enabled for WEBENCH Power DesignerPin compatible with LMZ23605/LMZ23603/LMZ22003Electrical specifications30W maximum total output powerUp to 5A output currentInput voltage range 6V to 20VOutput voltage range 0.8V to 6VEfficiency up to 92%Performance benefitsHigh efficiency reduces system heat generationTested to EN55022 Class B(1)Low component count, only 5 external componentsLow output voltage rippleUses PCB as heat sink, no airflow Required(1)(1)EN 55022:2006, +A1:2007, FCC Part 15 Subpart B: 2007. See AN-2125SNVA473and layout for information on device under test. Vin = 12 V, Vo = 3.3 V, Io = 5 AIntegrated shielded inductorSimple PCB LayoutFrequency synchronization input (650kHz to 950kHz)Flexible start-up sequencing using external soft-start, tracking and precision enableProtection against inrush currents and faults such as input UVLO and output short circuitJunction temperature range –40°C to 125°CSingle exposed pad for easy mounting and manufacturingFast transient response for powering FPGAs and ASICsFully enabled for WEBENCH Power DesignerPin compatible with LMZ23605/LMZ23603/LMZ22003Electrical specifications30W maximum total output powerUp to 5A output currentInput voltage range 6V to 20VOutput voltage range 0.8V to 6VEfficiency up to 92%Performance benefitsHigh efficiency reduces system heat generationTested to EN55022 Class B(1)Low component count, only 5 external componentsLow output voltage rippleUses PCB as heat sink, no airflow Required(1)(1)EN 55022:2006, +A1:2007, FCC Part 15 Subpart B: 2007. See AN-2125SNVA473and layout for information on device under test. Vin = 12 V, Vo = 3.3 V, Io = 5 A

Description

The LMZ22005 SIMPLE SWITCHER power module is an easy-to-use step-down DC-DC solution capable of driving up to 5-A load. The LMZ22005 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ22005 can accept an input voltage rail between 6 V and 20 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ22005 only requires two external resistors and three external capacitors to complete the power solution. The LMZ22005 is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. The sync input allows synchronization over the 650- to 950-kHz switching frequency range. The LMZ22005 SIMPLE SWITCHER power module is an easy-to-use step-down DC-DC solution capable of driving up to 5-A load. The LMZ22005 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering. The LMZ22005 can accept an input voltage rail between 6 V and 20 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ22005 only requires two external resistors and three external capacitors to complete the power solution. The LMZ22005 is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. The sync input allows synchronization over the 650- to 950-kHz switching frequency range.
