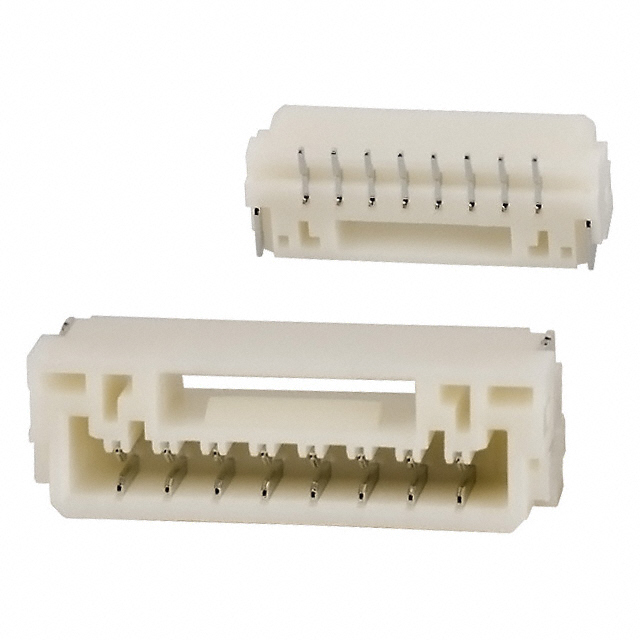

BM08B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD 8POS 1.25MM
| Part | Mated Stacking Heights | Voltage Rating | Connector Type | Termination | Insulation Color | Contact Type | Style | Fastening Type | Features | Insulation Material | Number of Positions | Shrouding | Contact Finish - Post | Number of Rows | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Shape | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 7.3 mm | 50 V | Header | Solder | Natural | Outer Shroud Contact | Board to Cable/Wire | Locking Ramp | Pick and Place Solder Retention | Nylon 9T Polyamide (PA9T) | 8 | Shrouded - 4 Wall | Tin | 1 | All | 0.049 in | 1.25 mm | 4.05 mm | 0.159 in | Phosphor Bronze | 85 °C | -25 °C | UL94 V-0 | Rectangular | Surface Mount |
