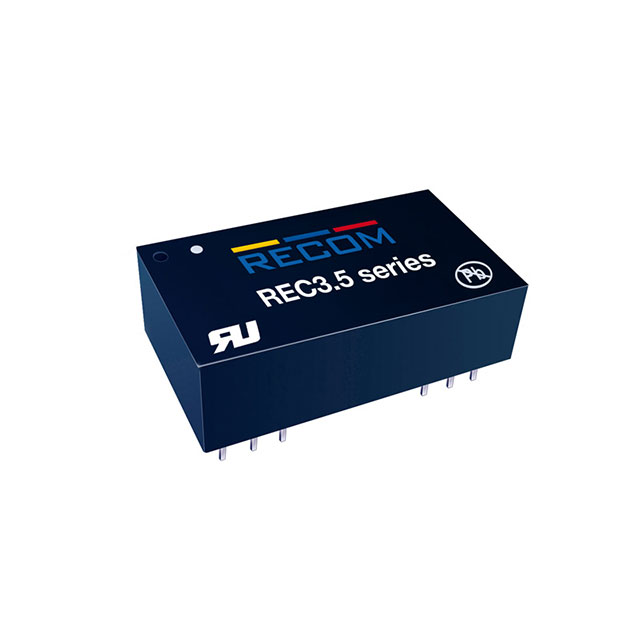

REC3.5-S_DRW/R Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3.5W DC/DC 8KV REG 48VIN +/-9VOUT

...

Part	Package / Case	Control Features	Applications	Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Input (Min) [Min]	Features	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 2	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)

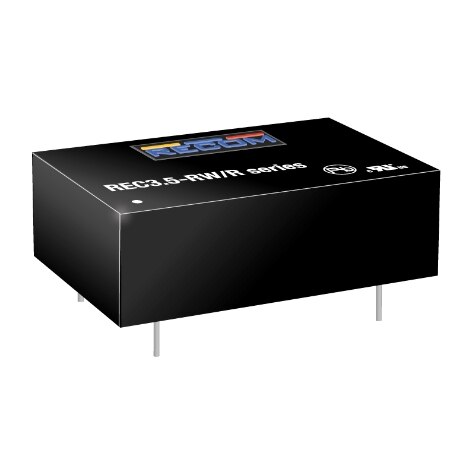

Recom Power REC3.5-4809DRW/R10/A/CTRL	24-DIP Module 7 Leads	Active Low Enable	ITE (Commercial) Medical	Isolated Module	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	75 V	83 %	Through Hole	36 V	Remote On/Off SCP	10000 VDC	194 mA	-9 V	9 V	3.5 W	85 °C	-40 C
Recom Power REC3.5-4805DRW/R10/A/CTRL	24-DIP Module 7 Leads	Active Low Enable	ITE (Commercial) Medical	Isolated Module	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	75 V		Through Hole	36 V	Remote On/Off SCP	10000 VDC		-5 V	5 V	3.5 W	85 °C	-40 C	350 mA
Recom Power REC3.5-2424SRW/R10/A/X1	24-DIP Module 6 Leads		ITE (Commercial) Medical	Isolated Module	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	36 V	84 %	Through Hole	18 V	SCP UVLO	10000 VDC	145 mA		24 V	3.5 W	85 °C	-40 C
Recom Power REC3.5-0505DRW/R8/C	24-DIP Module 9 Leads		ITE (Commercial) Medical	Isolated Module	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	9 V	77 %	Through Hole	4.5 V	SCP	8 kV		-5 V	5 V	3.5 W	85 °C	-40 C	350 mA
Recom Power REC3.5-4805DRW/R8/C	24-DIP Module 9 Leads		ITE (Commercial) Medical	Isolated Module	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	75 V		Through Hole	36 V	SCP	8 kV		-5 V	5 V	3.5 W	85 °C	-40 C	350 mA
Recom Power REC3.5-1212SRW/R8/A	24-DIP Module 6 Leads		ITE (Commercial) Medical	Isolated Module	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	18 V		Through Hole	9 V	SCP	8 kV	290 mA		12 V	3.5 W	85 °C	-40 C
Recom Power REC3.5-2415SRW/R8/C	24-DIP Module 9 Leads		ITE (Commercial) Medical	Isolated Module	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	36 V	85 %	Through Hole	18 V	SCP	8 kV	233 mA		15 V	3.5 W	85 °C	-40 C
Recom Power REC3.5-0515SRW/R10/C/X1	24-DIP Module 9 Leads		ITE (Commercial) Medical	Isolated Module	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	9 V	83 %	Through Hole	4.5 V	SCP UVLO	10000 VDC	233 mA		15 V	3.5 W	85 °C	-40 C
Recom Power REC3.5-1215DRW/R8/A	24-DIP Module 6 Leads		ITE (Commercial) Medical	Isolated Module	2	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	18 V		Through Hole	9 V	SCP	8 kV		-15 V	15 V	3.5 W	85 °C	-40 C	117 mA	117 mA
Recom Power REC3.5-1212SRW/R8/C	24-DIP Module 9 Leads		ITE (Commercial) Medical	Isolated Module	1	10.2 mm	20.3 mm	1.26 in	0.8 "	32 mm	0.4 "	18 V		Through Hole	9 V	SCP	8 kV	290 mA		12 V	3.5 W	85 °C	-40 C
