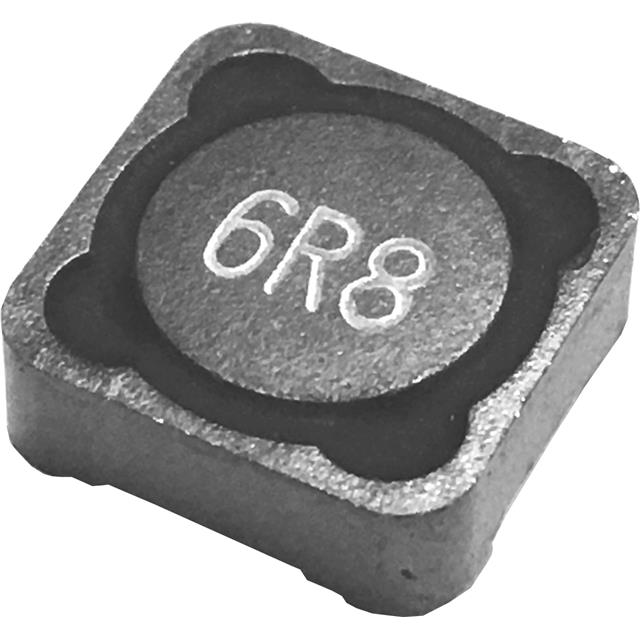

APCI Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Inductance	Current - Saturation (Isat)	Material - Core	DC Resistance (DCR) [Max]	Package / Case	Inductance Frequency - Test	Type	Shielding	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Pulse Electronics APCI00070746101M80	7.3 mm	0.287 "	0.287 in	7.3 mm	125 °C	-40 C	Surface Mount	0.86 A	4.6 mm	0.181 in	AEC-Q200	100 µH	990 mA	Ferrite	383 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	20 %
Pulse Electronics APCI00121250330T80	12 mm	0.472 in	0.472 "	12 mm	125 °C	-40 C	Surface Mount	3 A			AEC-Q200	33 µH	3.6 A	Ferrite	84.5 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	30 %	0.197 in	5 mm
Pulse Electronics APCI000707461R5M80	7.3 mm	0.287 "	0.287 in	7.3 mm	125 °C	-40 C	Surface Mount	6.6 A	4.6 mm	0.181 in	AEC-Q200	1.5 µH	7 A	Ferrite	8.9 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	20 %
Pulse Electronics APCI00121210331M80	12 mm	0.472 in	0.472 "	12 mm	125 °C	-40 C	Surface Mount	1.45 A			AEC-Q200	330 µH	1.8 A	Ferrite	340 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	20 %	0.394 in	10 mm
Pulse Electronics APCI00121250150TY0	12 mm	0.472 in	0.472 "	12 mm	125 °C	-40 C	Surface Mount	3.2 A			AEC-Q200	15 µH	3.2 A	Ferrite	50 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	30 %	0.197 in	5 mm
Pulse Electronics APCI00121280150M80	12 mm	0.472 in	0.472 "	12 mm	125 °C	-40 C	Surface Mount	4.5 A			AEC-Q200	15 µH	6.5 A	Ferrite		Nonstandard	100 kHz	Drum Core Wirewound	Shielded	20 %	0.315 in	8 mm	27 mOhm
Pulse Electronics APCI00121280120MY0	12 mm	0.472 in	0.472 "	12 mm	125 °C	-40 C	Surface Mount	4.9 A			AEC-Q200	12 µH	4.9 A	Ferrite	24.3 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	20 %	0.315 in	8 mm
Pulse Electronics APCI000707463R3T80	7.3 mm	0.287 "	0.287 in	7.3 mm	125 °C	-40 C	Surface Mount	4.8 A	4.6 mm	0.181 in	AEC-Q200	3.3 µH	5.9 A	Ferrite	16.9 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	30 %
Pulse Electronics APCI001212804R6TY0	12 mm	0.472 in	0.472 "	12 mm	125 °C	-40 C	Surface Mount	6.8 A			AEC-Q200	4.6 µH	6.8 A	Ferrite	15.8 mOhm	Nonstandard	100 kHz	Drum Core Wirewound	Shielded	30 %	0.315 in	8 mm
Pulse Electronics APCI000707465R6TY0	7.3 mm	0.287 "	0.287 in	7.3 mm	125 °C	-40 C	Surface Mount	3 A	4.6 mm	0.181 in	AEC-Q200	5.6 µH	3 A	Ferrite		Nonstandard	100 kHz	Drum Core Wirewound	Shielded	30 %
