929974 Series

Catalog

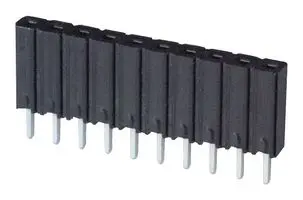

CONN RCPT 26POS 0.1 TIN-LEAD PCB

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Termination	Voltage Rating	Connector Type	Contact Finish - Post	Material Flammability Rating	Mounting Type	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Contact Finish - Mating	Number of Positions [custom]
3M Electronic Specialty 929974-01-26	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin-Lead	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull	26	Tin-Lead
3M Electronic Specialty 929974-01-23	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin-Lead	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull	23	Tin-Lead
3M Electronic Specialty 929974-01-19-RK	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull	19
3M Electronic Specialty 929974-01-31-RK	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull			31
3M Electronic Specialty 929974-01-13-RK	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull	13
3M Electronic Specialty 929974-01-34-RK	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull			34
3M Electronic Specialty 929974-01-35	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin-Lead	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull	35	Tin-Lead
3M Electronic Specialty 929974-01-29-RK	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull	29
3M Electronic Specialty 929974-01-21-RK	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull	21
3M Electronic Specialty 929974-01-03-RK	2.54 µm	100 µin	Square	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Copper Alloy	-40 C	105 ░C	1	2 A	0.125 in	3.18 mm	Forked	0.1 "	2.54 mm	0.325 in	8.25 mm	Solder	1500 V	Receptacle	Tin	UL94 V-0	Through Hole	Black	All	100 çin	2.54 çm	Push-Pull
