A3SJ Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Electrical Life	Mechanical Life	Actuator Type	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - AC	Current Rating (Amps)	Color - Actuator/Cap	Termination Style	Actuator Marking	Mounting Type	Type	Ingress Protection	Illumination Type, Color	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	(Select First, Then Apply Filters) Compatible Series	Illumination	Requires	For Use With/Related Products	Accessory Type

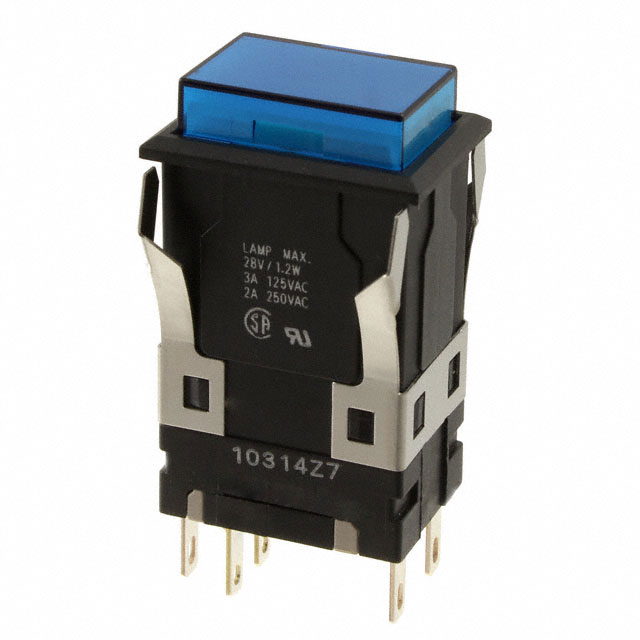

Omron Automation and Safety A3SJ-90A1-24SA	100000 Cycles	1000000 Cycles	Button Rectangular	30 V	16.2 mm	22.4 mm	24 VAC/DC	On-Mom	125 V	2 A 3 A	Blue	Quick Connect - 0.110" (2.8mm)	No Marking	Panel Mount Snap-In	Illuminated Standard	IP00	Blue LED	SPDT	50 °C	-10 °C

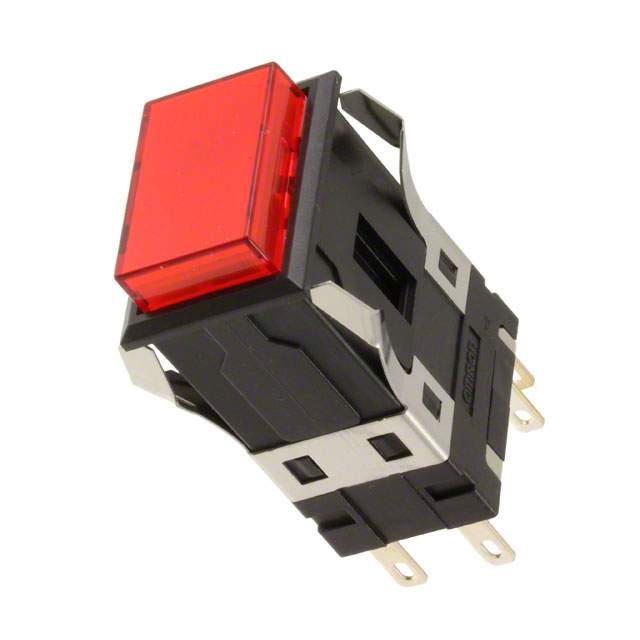

Omron Automation and Safety A3SJ-90A1-24SR	100000 Cycles	1000000 Cycles	Button Rectangular	30 V	16.2 mm	22.4 mm	24 VAC/DC	On-Mom	125 V	2 A 3 A	Red	Quick Connect - 0.110" (2.8mm)	No Marking	Panel Mount Snap-In	Illuminated Standard	IP00	LED Red	SPDT	50 °C	-10 °C

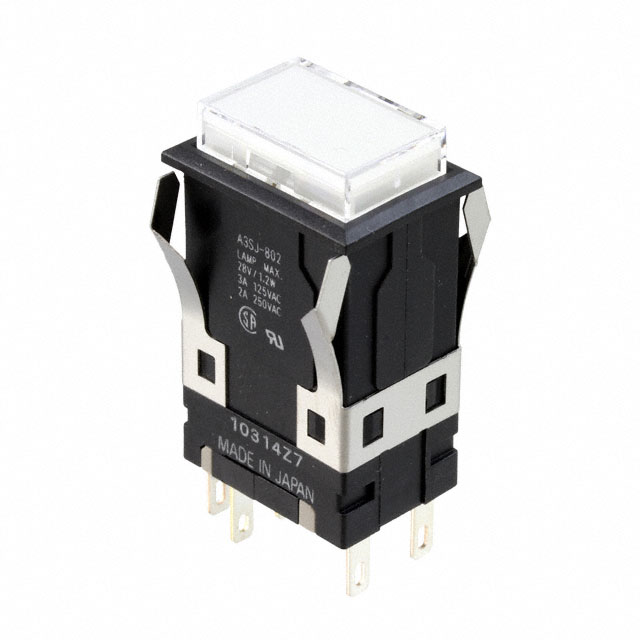

Omron Automation and Safety A3SJ-90B1-24SW	100000 Cycles	100000 Cycles	Button Rectangular	30 V	16.2 mm	22.4 mm	24 VAC/DC	On-On	125 V	2 A 3 A	White	Quick Connect - 0.110" (2.8mm)	No Marking	Panel Mount Snap-In	Illuminated Standard	IP00	Amber LED	SPDT	50 °C	-10 °C

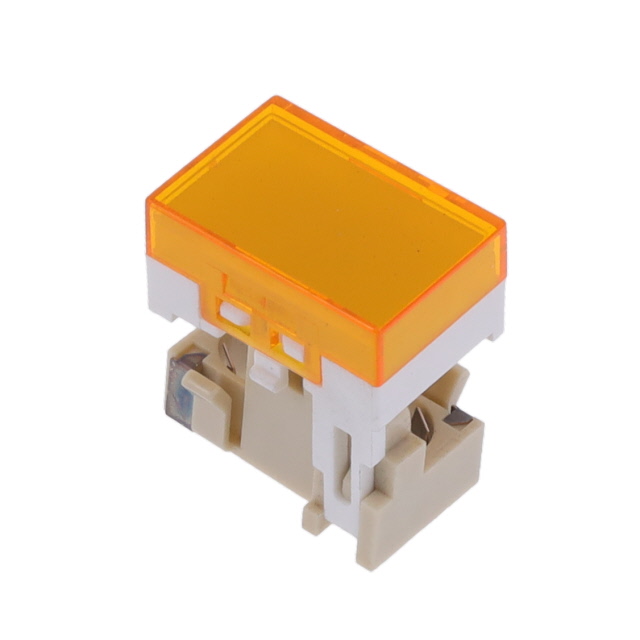

Omron Automation and Safety A3SJ-5805			Pushbutton Rectangular																		A3S Omron	Illuminated - Yellow	Contact Block(s) Illumination Source
Omron Automation and Safety A3SJ-90B1-24SG	100000 Cycles	100000 Cycles	Button Rectangular	30 V	16.2 mm	22.4 mm	24 VAC/DC	On-On	125 V	2 A 3 A	Green	Quick Connect - 0.110" (2.8mm)	No Marking	Panel Mount Snap-In	Illuminated Standard	IP00	Green LED	SPDT	50 °C	-10 °C
Omron Automation and Safety A3SJ-2308																								A3S Series	Plunger
Omron Automation and Safety A3SJ-90E1-24EG	100000 Cycles	1000000 Cycles	Button Rectangular	30 V	16.2 mm	22.4 mm	24 V	On-Mom	125 V	100 mA	Green	Quick Connect - 0.110" (2.8mm)	No Marking	Panel Mount Snap-In	Illuminated Standard	IP00	Green LED	SPDT	50 °C	-10 °C
Omron Automation and Safety A3SJ-4004

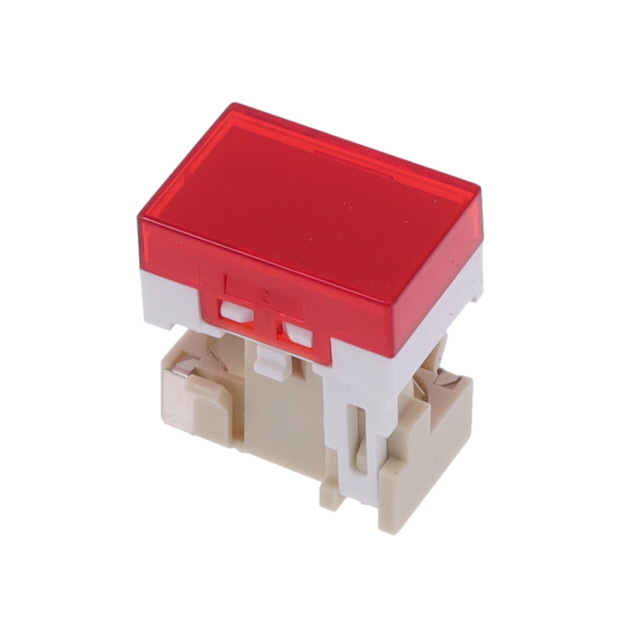

Omron Automation and Safety A3SJ-5802			Pushbutton Rectangular																		A3S Omron	Illuminated - Red	Contact Block(s) Illumination Source
Omron Automation and Safety A3SJ-4106
