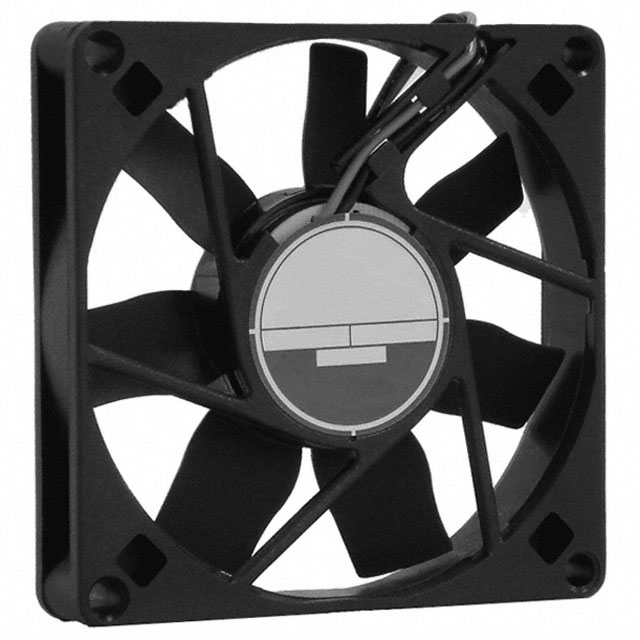

OD8015 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN AXIAL 80X15MM 12VDC WIRE
| Part | Material - Blade | Material - Frame | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Bearing Type | Approval Agency | Fan Type | Features | Voltage - Rated | Termination | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Current Rating (Amps) | Static Pressure | Static Pressure | Noise | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Ball | cURus TUV | Tubeaxial | PWM Control Speed Sensor (Tach) | 12 VDC | 4 Wire Leads | ||||||||||||

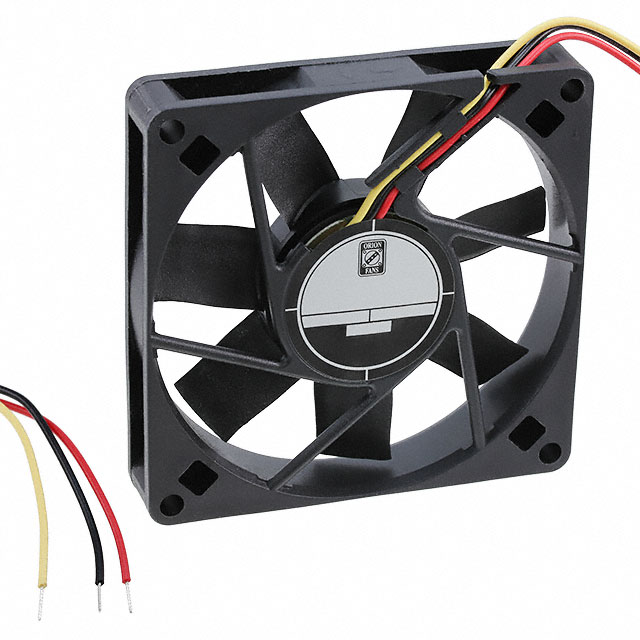

 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Sleeve | cURus TUV | Tubeaxial | Speed Sensor (Tach) | 12 VDC | 3 Wire Leads | ||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Sealed Sleeve | cURus TUV | Tubeaxial | Speed Sensor (Tach) | 12 VDC | 3 Wire Leads | ||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Sleeve | cURus TUV | Tubeaxial | Locked Rotor Sensor | 12 VDC | 3 Wire Leads | ||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Sleeve | cURus TUV | Tubeaxial | 12 VDC | 2 Wire Leads | |||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Sleeve | cURus TUV | Tubeaxial | PWM Control Speed Sensor (Tach) | 12 VDC | 4 Wire Leads | ||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Ball | cURus TUV | Tubeaxial | Speed Sensor (Tach) | 12 VDC | 3 Wire Leads | ||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Ball | cURus TUV | Tubeaxial | 12 VDC | 2 Wire Leads | 8 V | 16 V | 45 °C 60000 Hrs | 50 mA | 0.07 in H2O | 17.4 Pa | 26 dB | 80 °C | -20 ░C | 2500 RPM | 23 CFM | 0.644 m³/min | |
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Sealed Sleeve | cURus TUV | Tubeaxial | 24 VDC | 2 Wire Leads | |||||||||||||
ORION FANS | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 15 mm | 80 mm | 80 mm | Sealed Sleeve | cURus TUV | Tubeaxial | Locked Rotor Sensor | 5 V | 3 Wire Leads |
