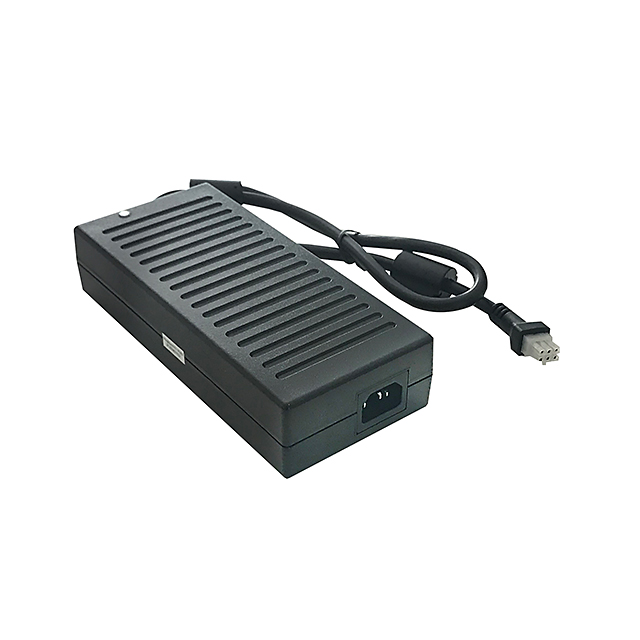

DTM250 Series

Catalog

AC/DC POWER SUPPLY, MEDICAL, 1 OUTPUT, 250 W, 54 V, 4.629 A

Part	Weight [custom]	Weight [custom]	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Region Utilized	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	No Load Power Consumption	Voltage - Output	Output Connector	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Form	Efficiency	Power (Watts)	Cord Length	Cord Length	Current - Output (Max) [Max]	Applications	Approval Agency
TDK Corporation DTM250PW540D	1.3 kg	2.8 lbs	IEC 320-C14	3.54 in	7.87 in	200 mm	44 mm	1.73 "	90 mm	International	-20 ░C	60 °C	Cord (Sold Separately)	150 mW	54 V	Rectangular	6 Position	264 VAC	90 VAC	Desktop (Class I)	CoC Tier 2 Level VI	250 W	31.5 in	0.8 m	4.629 A	ITE (Commercial) Medical	CE
TDK Corporation DTM250PW360D	1.3 kg	2.8 lbs	IEC 320-C14	3.54 in	7.87 in	200 mm	44 mm	1.73 "	90 mm	International	-20 ░C	60 °C	Cord (Sold Separately)	150 mW	36 V	Rectangular	6 Position	264 VAC	90 VAC	Desktop (Class I)	CoC Tier 2 Level VI	250 W	31.5 in	0.8 m	6.94 A	ITE (Commercial) Medical	CE
TDK Corporation DTM250PW280D	1.3 kg	2.8 lbs	IEC 320-C14	3.54 in	7.87 in	200 mm	44 mm	1.73 "	90 mm	International	-20 ░C	60 °C	Cord (Sold Separately)	150 mW	28 V	Rectangular	6 Position	264 VAC	90 VAC	Desktop (Class I)	CoC Tier 2 Level VI	250 W	31.5 in	0.8 m	8.928 A	ITE (Commercial) Medical	CE
TDK Corporation DTM250PW120D	1.3 kg	2.8 lbs	IEC 320-C14	3.54 in	7.87 in	200 mm	44 mm	1.73 "	90 mm	International	-20 ░C	60 °C	Cord (Sold Separately)	150 mW	12 V	Rectangular	6 Position	264 VAC	90 VAC	Desktop (Class I)	CoC Tier 2 Level VI	250 W	31.5 in	0.8 m	20.83 A	ITE (Commercial) Medical	CE
TDK Corporation DTM250PW480D	1.3 kg	2.8 lbs	IEC 320-C14	3.54 in	7.87 in	200 mm	44 mm	1.73 "	90 mm	International	-20 ░C	60 °C	Cord (Sold Separately)	150 mW	48 V	Rectangular	6 Position	264 VAC	90 VAC	Desktop (Class I)	CoC Tier 2 Level VI	250 W	31.5 in	0.8 m	5.208 A	ITE (Commercial) Medical	CE
