4509HQ Series
Manufacturer: Sunon Fans
Beta
⌘K

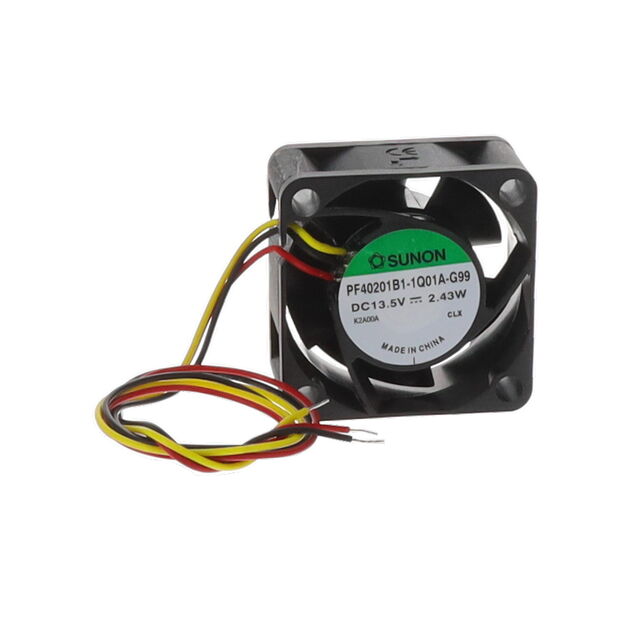

FAN AXIAL 40X20MM 13.5VDC WIRE
| Part | Material - Blade | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Voltage - Rated | Approval Agency | Noise | Air Flow | Air Flow | Features | Termination | Size / Dimension [x] | Size / Dimension [z] | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Width [y] | RPM | Power (Watts) | Weight | Weight | Fan Type | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | Polybutylene Terephthalate (PBT) | 0.18 A | 16 V | 6 VDC | 70000 Hrs | 13.5 VDC | CE | 46.5 dB | 0.392 m³/min | 14 CFM | Auto Restart Speed Sensor (Tach) | 3 Wire Leads | 40 mm | 40 mm | Ball | 105 ░C | -40 C | 20 mm | 13000 RPM | 2.43 W | 27.67 g | 0.061 lb | Tubeaxial | 196.8 Pa | 0.79 in H2O |
