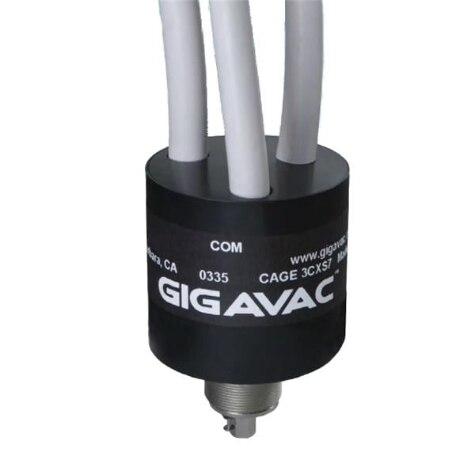

Industrial Relays 70KV SPDT HV RELAY
Industrial Relays 70KV SPDT HV RELAY
| Part | Operate Time | Coil Resistance | Coil Power | Contact Material | Coil Current | Release Time | Termination Style | Operating Temperature (Min) | Operating Temperature (Max) | Must Release Voltage | Mounting Type | Must Operate Voltage | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Coil Voltage | Contact Form | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata - Gigavac Industrial | 20 ms | 18 Ohms | 8 W | Tungsten (W) | 666.7 mA | 10 ms | Solder Turret Wire Leads | -50 °C | 85 °C | 0.5 VDC | Panel Mount | 9 VDC | 70000 VDC | 30000 VAC | 12 VAC | 1 C Form SPDT | 10 A |
