SMC-1 Series
Manufacturer: Adam Tech
Beta
⌘K

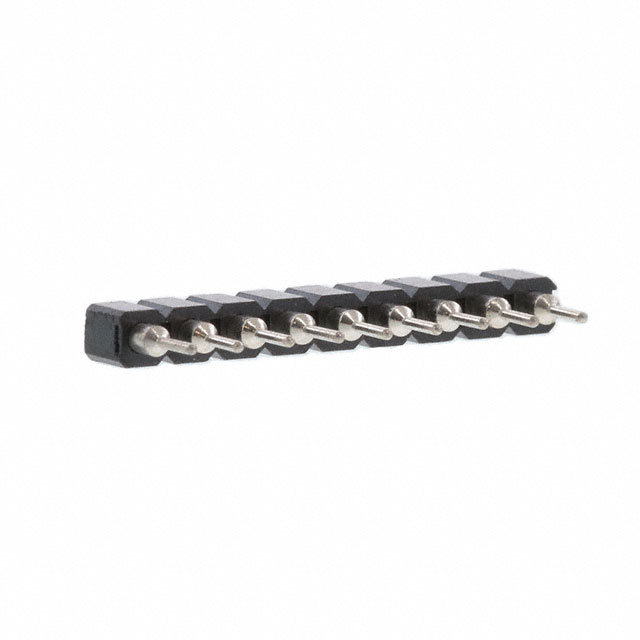

MACHINE PIN SOCKET 9P 2.54MM PIT
| Part | Contact Material | Contact Shape | Insulation Material | Mounting Type | Fastening Type | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Current Rating (Amps) | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Contact Finish Thickness - Mating | Voltage Rating | Voltage Rating | Connector Type | Number of Positions | Termination | Contact Type | Contact Finish - Post | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Copper Alloy | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Push-Pull | 1 | 0.1 " | 2.54 mm | Gold | 3 A | Black | -55 C | 105 ░C | All | Flash | 100 V | 150 VDC | Socket | 9 | Solder | Female Socket | Tin | UL94 V-0 |
 Adam Tech | Copper Alloy | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Push-Pull | 1 | 0.1 " | 2.54 mm | Gold | 3 A | Black | -55 C | 105 ░C | All | Flash | 100 V | 150 VDC | Socket | 6 | Solder | Female Socket | Tin | UL94 V-0 |
 Adam Tech | Copper Alloy | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Push-Pull | 1 | 0.1 " | 2.54 mm | Gold | 3 A | Black | -55 C | 105 ░C | All | Flash | 100 V | 150 VDC | Socket | 7 | Solder | Female Socket | Tin | UL94 V-0 |
 Adam Tech | Copper Alloy | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Push-Pull | 1 | 0.1 " | 2.54 mm | Gold | 3 A | Black | -55 C | 105 ░C | All | Flash | 100 V | 150 VDC | Socket | 11 | Solder | Female Socket | Tin | UL94 V-0 |
 Adam Tech | Copper Alloy | Circular | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Push-Pull | 1 | 0.1 " | 2.54 mm | Gold | 3 A | Black | -55 C | 105 ░C | All | Flash | 100 V | 150 VDC | Socket | 1 | Solder | Female Socket | Tin | UL94 V-0 |
