SMQ Series

Manufacturer: Chemi-Con

Catalog

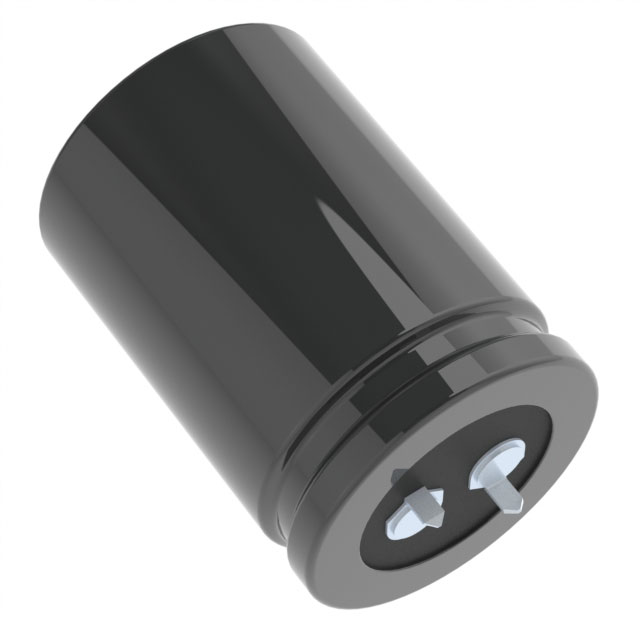

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 1000UF 350 VOLT

Part	Tolerance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Voltage - Rated	Mounting Type	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Capacitance	Package / Case	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Size / Dimension	Height - Seated (Max) [Max] [z]
Chemi-Con ESMQ351VSN102MA50S	20 %	0.394 in	10 mm	1.969 in	50 mm	Polar	350 V	Through Hole	2000 Hrs	1.378 "	35 mm	85 °C	-25 °C	General Purpose	1000 µF	Radial Can - Snap-In	5.062 A	3.54 A
Chemi-Con ESMQ451VSN391MA35S	20 %	0.394 in	10 mm			Polar	450 V	Through Hole	2000 Hrs	1.378 "	35 mm	85 °C	-25 °C	General Purpose	390 µF	Radial Can - Snap-In	3.2032 A		37 mm	1.457 in
Chemi-Con ESMQ401VSN391MR35S	20 %	0.394 in	10 mm			Polar	400 V	Through Hole	2000 Hrs	1.181 "		85 °C	-25 °C	General Purpose	390 µF	Radial Can - Snap-In	3.0459 A	2.13 A	37 mm	1.457 in	30 mm
Chemi-Con ESMQ421VSN391MA30S	20 %	0.394 in	10 mm			Polar	420 V	Through Hole	2000 Hrs	1.378 "	35 mm	85 °C	-25 °C	General Purpose	390 µF	Radial Can - Snap-In	3.246 A	2.27 A		1.26 in		32 mm
Chemi-Con ESMQ401VSN271MR25S	20 %	0.394 in	10 mm	1.063 in	27 mm	Polar	400 V	Through Hole	2000 Hrs	1.181 "		85 °C	-25 °C	General Purpose	270 µF	Radial Can - Snap-In	2.388 A	1.67 A			30 mm
Chemi-Con ESMQ251VSN821MR30S	20 %	0.394 in	10 mm			Polar	250 V	Through Hole	2000 Hrs	1.181 "		85 °C	-25 °C	General Purpose	820 µF	Radial Can - Snap-In	4.155 A	2.77 A		1.181 "	30 mm	30 mm
Chemi-Con ESMQ421VSN151MP30S	20 %	0.394 in	10 mm			Polar	420 V	Through Hole	2000 Hrs	0.866 "	22 mm	85 °C	-25 °C	General Purpose	150 µF	Radial Can - Snap-In	1.859 A	1.3 A		1.26 in		32 mm
