MDLSP1 Series

Catalog

BRD SPT SNAP LOCK NYLON 2MM

Part	Between Board Height [custom]	Between Board Height [custom]	Holding Type	Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall	Between Board Height	Between Board Height	Between Board Height [z]	Between Board Height [z]

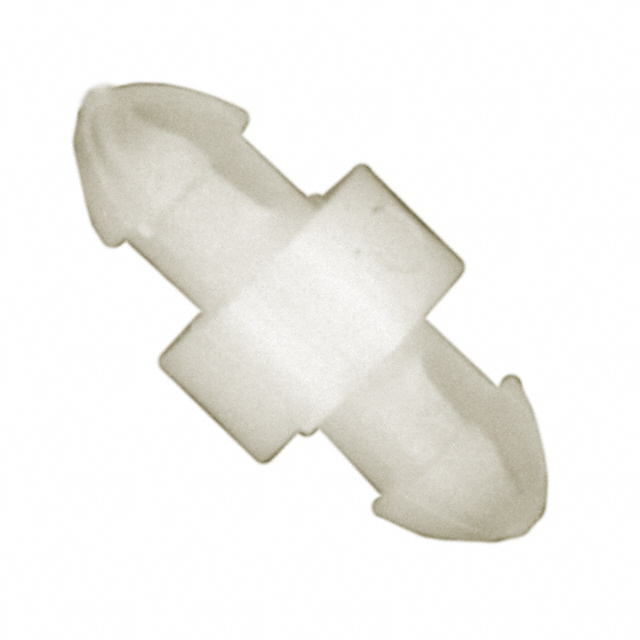

Essentra Components MDLSP1-02M-01	2 mm	0.079 in	Snap Lock	Nylon	2.5 mm	0.098 in	Snap Lock	0.366 in	9.3 mm	1.65 mm	0.065 in	1.65 mm	0.065 in
Essentra Components MDLSP1-08M-01			Snap Lock	Nylon	2.5 mm	0.098 in	Snap Lock	0.602 in		1.65 mm	0.065 in	1.65 mm	0.065 in	15.3 mm	0.315 in	8 mm

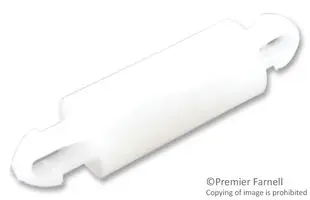

Essentra Components MDLSP1-10M-01			Snap Lock	Nylon	2.5 mm	0.098 in	Snap Lock	0.681 in	17.3 mm	1.65 mm	0.065 in	1.65 mm	0.065 in				0.394 in	10 mm

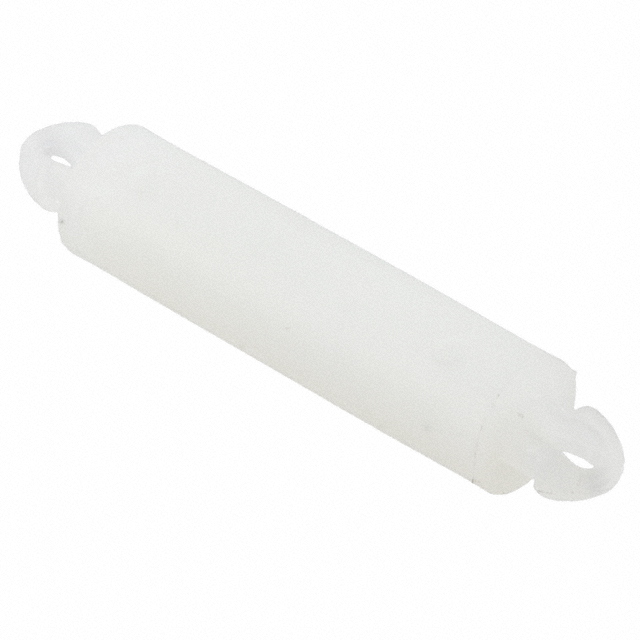

Essentra Components MDLSP1-18M-01			Snap Lock	Nylon	2.5 mm	0.098 in	Snap Lock	0.996 in	25.3 mm	1.65 mm	0.065 in	1.65 mm	0.065 in				0.709 in	18 mm
