FS150R12 Series

Manufacturer: INFINEON

Catalog

THE FS150R12PT4 IS A SIXPACK IGBT4 - T4 MODULE IN A ECONOPACK™ 4 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 150 A.

Part	Input	Current - Collector Cutoff (Max) [Max]	Mounting Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Configuration	Input Capacitance (Cies) @ Vce	Power - Max [Max]
INFINEON FS150R12PT4BOSA1	Standard	1 mA	Chassis Mount	Module	200 A	1200 V	Module	2.15 V	-40 C	150 °C	Trench Field Stop	Three Phase Inverter	9.35 nF	680 W
INFINEON FS150R12N2T7BPSA1	Standard	1.2 µA	Chassis Mount	AG-ECONO2	150 A	1200 V	Module	1.8 V	-40 °C	175 °C	Trench Field Stop	Three Level Inverter	30.1 nF	20 mW

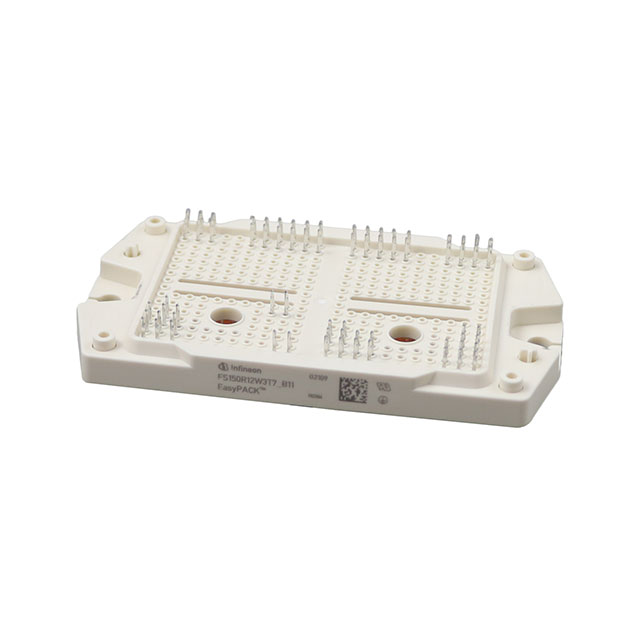

INFINEON FS150R12W3T7B11BPSA1	Standard	1.2 µA	Chassis Mount	Module	150 A	1200 V	Module	1.8 V	-40 °C	175 °C	Trench Field Stop	Three Phase Inverter	30.1 nF	20 mW
INFINEON FS150R12N3T4PB81BPSA1
INFINEON FS150R12KT4PB11BPSA1
INFINEON FS150R12KT4BOSA1	Standard	1 mA	Chassis Mount	Module	150 A	1200 V	Module	2.1 V	-40 °C	150 °C	Trench Field Stop	Three Phase Inverter		750 W

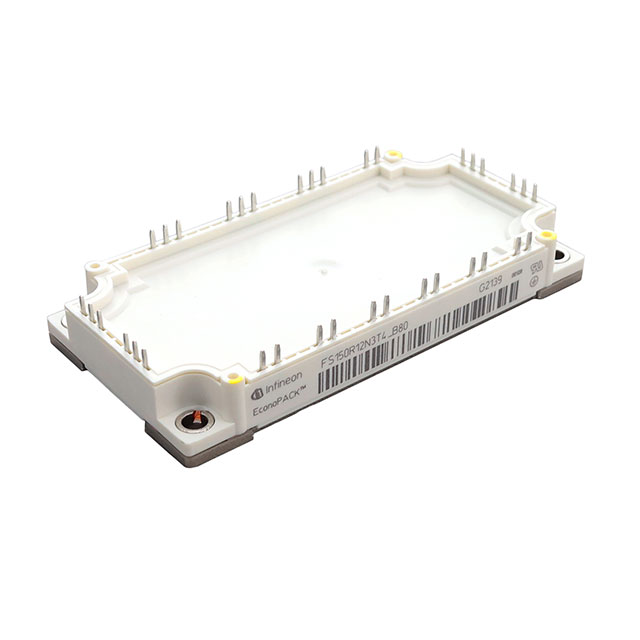

INFINEON FS150R12N3T4B80BPSA1
INFINEON FS150R12KT4PBPSA1

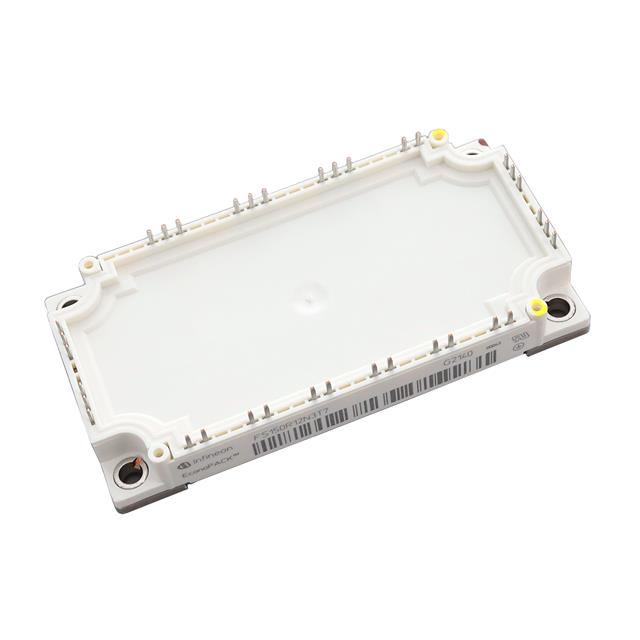

INFINEON FS150R12N3T7BPSA1	Standard	12 µA	Chassis Mount	AG-ECONO3B	150 A	1200 V	Module	1.8 V	-40 °C	175 °C	Trench Field Stop	Three Phase Inverter	30.1 nF	20 mW
INFINEON FS150R12N2T7B54BPSA1	Standard	12 µA	Chassis Mount	AG-ECONO2B	150 A	1200 V	Module	1.8 V	-40 °C	175 °C	Trench Field Stop	Full Bridge Inverter	30.1 nF
