AEQ104 Series

Catalog

SWITCH SNAP ACTION SPDT 0.1A 30V

Part	Operating Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Termination Style	Circuit	Ingress Protection	Operating Position	Operating Position	Mounting Type	Actuator Type	Switch Function	Overtravel [custom]	Overtravel [custom]	Electrical Life	Operating Position [x]	Operating Position [x]
Panasonic Electronic Components AEQ10418	153 gf	100 mA	85 °C	-25 °C	30 V	Solder Lug	SPDT	IP40	0.472 in	12 mm	Chassis Mount	Lever Simulated Roller	On-Mom	2.8 mm	0.11 "	100000 Cycles
Panasonic Electronic Components AEQ10417	173 gf	100 mA	85 °C	-25 °C	30 V	Solder Lug	SPDT	IP40			Chassis Mount	Lever Straight	On-Mom	2.6 mm	0.102 "	100000 Cycles	9.3 mm	0.366 in

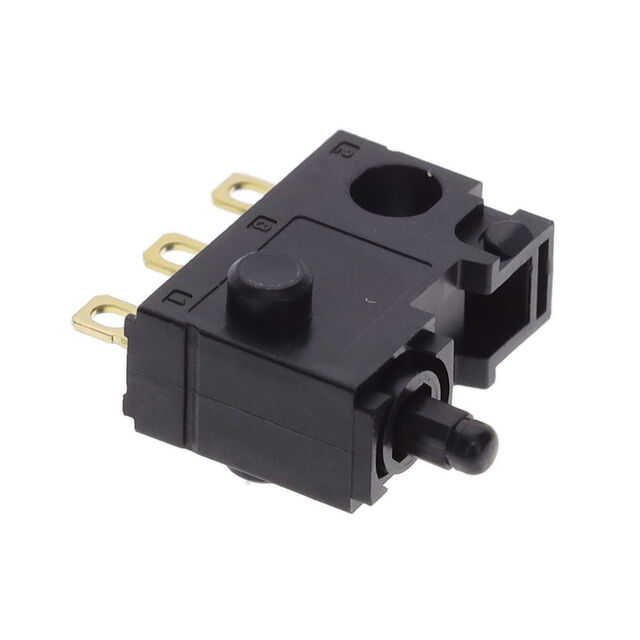

Panasonic Electronic Components AEQ10410	122 gf	100 mA	85 °C	-25 °C	30 V	Solder Lug	SPDT	IP40	0.33 in	8.4 mm	Chassis Mount	Round (Pin Plunger)	On-Mom	2.2 mm	0.087 "	100000 Cycles
