745-053 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 53POS 0.100

Part	Material - Insulation	Termination Rows	Read Out	Gender	Contact Type	Color	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Rows	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Pitch	Pitch	Contact Finish	Card Type
EDAC Inc. 745-053-520-106	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-525-106	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-540-106	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-520-101	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-540-101	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge

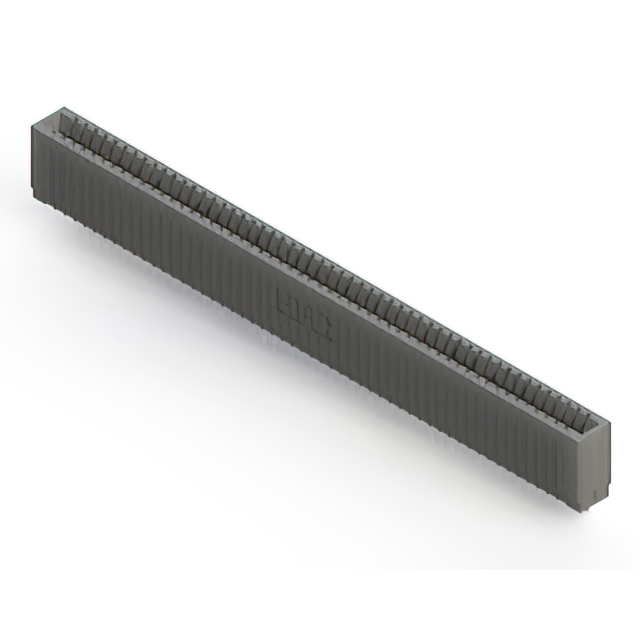

EDAC Inc. 745-053-525-101	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-522-106	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-541-101	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-545-101	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
EDAC Inc. 745-053-522-101	Polyester Thermoplastic	1	Single	Female	Cantilever	Black	53	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	1	Copper Alloy	-40 C	105 ░C	30 Áin	0.76 Ám	53	Through Hole	0.1 "	2.54 mm	Gold	Non Specified - Single Edge
