AWHP Series

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Manufacturer: Pulse Electronics

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Catalog

RF Inductors - SMD Chilisin RF inductor Wire Wound-STD

Part	Current Rating (Amps)	Inductance	Ratings	Tolerance	Package / Case	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Mounting Type	Q @ Freq [custom]	Q @ Freq [custom]	Material - Core	Inductance Frequency - Test	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Q @ Freq	Q @ Freq [custom]	DC Resistance (DCR)	DC Resistance (DCR)
Pulse Electronics AWHP0011070620NG00	780 mA	20 nH	AEC-Q200	2 %	0402 (1005 Metric)	3.5 GHz	125 °C	-40 C	0402	220 mOhm	0.026 in	0.65 mm	Unshielded	Surface Mount	250 MHz	30	Ceramic	250 MHz	Drum Core Wirewound	0.028 in	1.1 mm	0.7 mm	0.043 in
Pulse Electronics AWHP0016100851NH00	660 mA	51 nH	AEC-Q200	3 %	0603	2.3 GHz	125 °C	-40 C		280 mOhm	0.04 in	1.02 mm	Unshielded	Surface Mount			Ceramic	200 MHz	Drum Core Wirewound	0.039 in	1.6 mm	1 mm	0.063 "	1608 Metric	42 250 MHz
Pulse Electronics AWHP001107063N9G00	1.7 A	3.9 nH	AEC-Q200	2 %	0402 (1005 Metric)	9.5 GHz	125 °C	-40 C	0402	65 mOhm	0.026 in	0.65 mm	Unshielded	Surface Mount			Ceramic	250 MHz	Drum Core Wirewound	0.028 in	1.1 mm	0.7 mm	0.043 in		28 250 MHz
Pulse Electronics AWHP0011070633NH00	490 mA	33 nH	AEC-Q200	3 %	0402 (1005 Metric)	2.8 GHz	125 °C	-40 C	0402	380 mOhm	0.026 in	0.65 mm	Unshielded	Surface Mount	250 MHz	30	Ceramic	250 MHz	Drum Core Wirewound	0.028 in	1.1 mm	0.7 mm	0.043 in
Pulse Electronics AWHP001107062N2C00	2.1 A		AEC-Q200	0.2 nH	0402 (1005 Metric)	15.1 GHz	125 °C	-40 C	0402	45 mOhm	0.026 in	0.65 mm	Unshielded	Surface Mount	250 MHz		Ceramic	250 MHz	Drum Core Wirewound	0.028 in	1.1 mm	0.7 mm	0.043 in			25
Pulse Electronics AWHP0016100822NJ00	0.85 A	22 nH	AEC-Q200	5 %	0603		125 °C	-40 C		195 mOhm	0.04 in	1.02 mm	Unshielded	Surface Mount			Ceramic	250 MHz	Drum Core Wirewound	0.039 in	1.6 mm	1 mm	0.063 "	1608 Metric	40 250 MHz

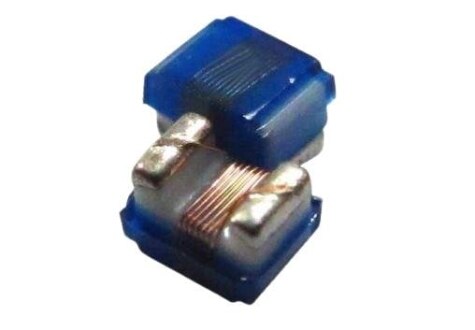

Pulse Electronics AWHP0011070615NG00	1.1 A	15 nH	AEC-Q200	2 %	0402 (1005 Metric)	3.9 GHz	125 °C	-40 C	0402		0.026 in	0.65 mm	Unshielded	Surface Mount	250 MHz	30	Ceramic	250 MHz	Drum Core Wirewound	0.028 in	1.1 mm	0.7 mm	0.043 in				130 mOhm
Pulse Electronics AWHP001107066N8G00	1.5 A	6.8 nH	AEC-Q200	2 %	0402 (1005 Metric)	5.8 GHz	125 °C	-40 C	0402		0.026 in	0.65 mm	Unshielded	Surface Mount	250 MHz		Ceramic	250 MHz	Drum Core Wirewound	0.028 in	1.1 mm	0.7 mm	0.043 in			25		95 mOhm
Pulse Electronics AWHP0016100839NH00	0.68 A	39 nH	AEC-Q200	3 %	0603	2.45 GHz	125 °C	-40 C		190 mOhm	0.04 in	1.02 mm	Unshielded	Surface Mount			Ceramic	250 MHz	Drum Core Wirewound	0.039 in	1.6 mm	1 mm	0.063 "	1608 Metric	48 250 MHz
Pulse Electronics AWHP0011070651NH00	360 mA	51 nH	AEC-Q200	3 %	0402 (1005 Metric)	2.3 GHz	125 °C	-40 C	0402	980 mOhm	0.026 in	0.65 mm	Unshielded	Surface Mount	250 MHz	30	Ceramic	250 MHz	Drum Core Wirewound	0.028 in	1.1 mm	0.7 mm	0.043 in
