SSL-LX20465 Series

Catalog

LED GREEN DIFF T-2MM TAPER T/H

Part	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Color	Viewing Angle	Package / Case	Lens Style	Wavelength - Peak	Height (Max) [Max] [z]	Supplier Device Package	Configuration	Millicandela Rating	Lens Size [diameter]	Current - Test	Lens Transparency	Color
Lumex Opto/Components Inc. SSL-LX20465LGD	Through Hole	2.2 V	Green	70 °	Radial	Round with Flat Top	565 nm	5 mm	T-2mm Taper Body	Standard	10 mcd	2 mm	20 mA	Diffused	Green
Lumex Opto/Components Inc. SSL-LX20465LID	Through Hole	2 V	Red	70 °	Radial	Round with Flat Top	635 nm	5 mm	T-2mm Taper Body	Standard	25 mcd	2 mm	20 mA	Diffused	Red
Lumex Opto/Components Inc. SSL-LX20465LAD	Through Hole	2 V	Amber	70 °	Radial	Round with Flat Top	610 nm	5 mm	T-2mm Taper Body	Standard	10 mcd	2 mm	20 mA	Diffused	Amber

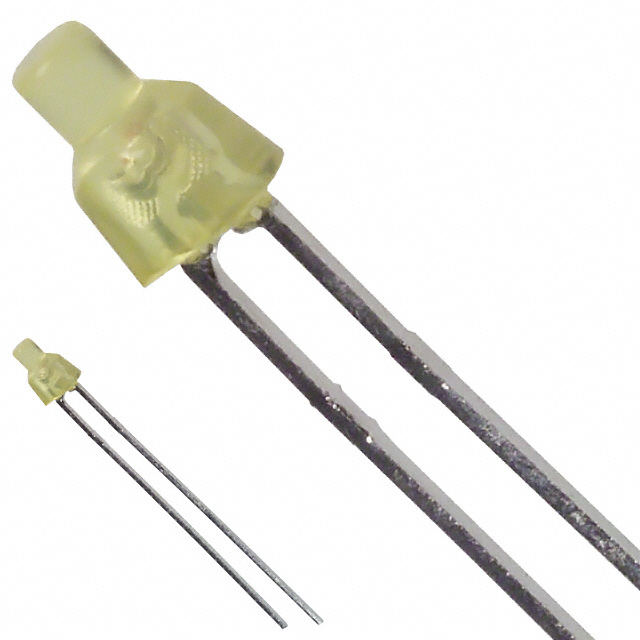

Lumex Opto/Components Inc. SSL-LX20465YD	Through Hole	2.1 V	Yellow	70 °	Radial	Round with Flat Top	585 nm	5 mm	T-2mm Taper Body	Standard	10 mcd	2 mm	20 mA	Diffused	Yellow

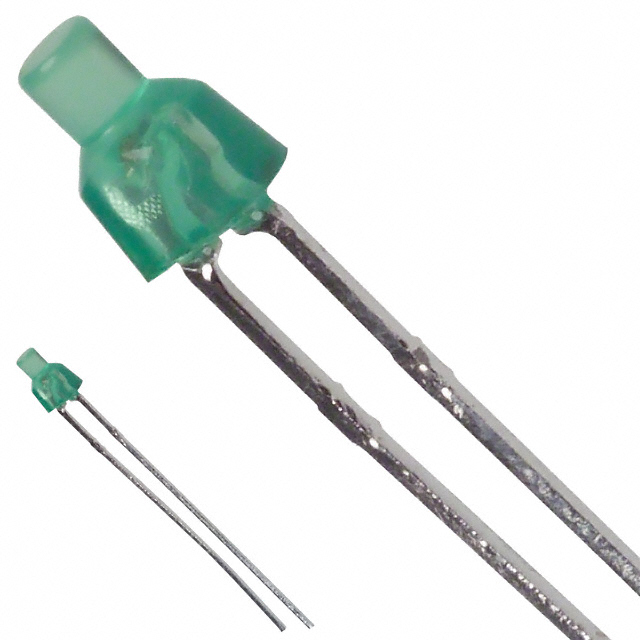

Lumex Opto/Components Inc. SSL-LX20465GD	Through Hole	2.2 V	Green	70 °	Radial	Round with Flat Top	565 nm	5 mm	T-2mm Taper Body	Standard	10 mcd	2 mm	20 mA	Diffused	Green

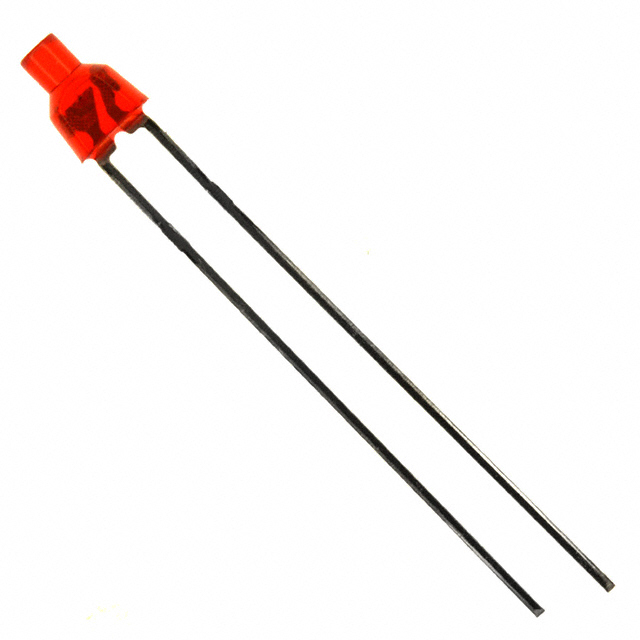

Lumex Opto/Components Inc. SSL-LX20465ID	Through Hole	2 V	Red	70 °	Radial	Round with Flat Top	635 nm	5 mm	T-2mm Taper Body	Standard	25 mcd	2 mm	20 mA	Diffused	Red
Lumex Opto/Components Inc. SSL-LX20465HD	Through Hole	2 V	Red	70 °	Radial	Round with Flat Top	700 nm	5 mm	T-2mm Taper Body	Standard	3 mcd	2 mm	20 mA	Diffused	Red
