PKU551 Series

Catalog

DC DC CONVERTER 3.3V 50W

Part	Number of Outputs	Current - Output (Max)	Package Name	Approval Agency	Voltage - Isolation	Control Features	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Standard Number	Voltage - Input (Max)	Applications	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Output 1	Package / Case	Type	Voltage - Input (Min)	Features	Power (Watts)	Efficiency

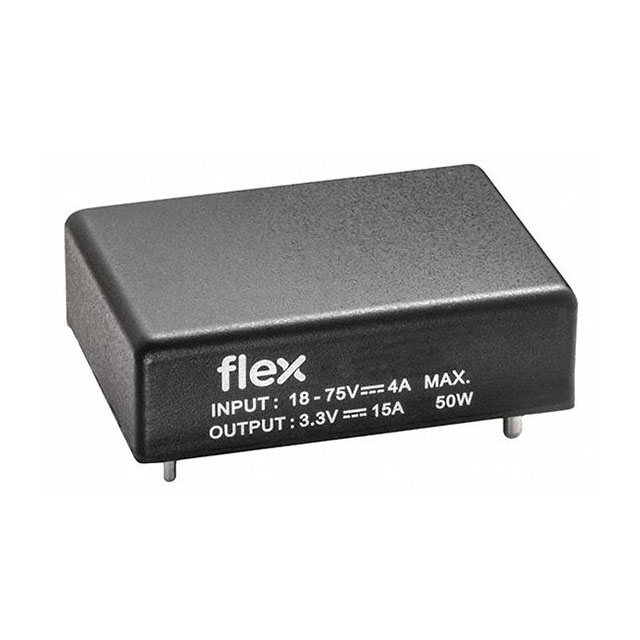

Flex Power Modules PKU5510SPI	1	15 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Through Hole	-40 °C	100 °C	62368-1	75 V	ITE (Commercial)	0.41 in	1.39 in	0.98 in	3.3 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off Remote Sense	50 W	90 %
Flex Power Modules PKU5515SPI	1	3.4 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Through Hole	-40 °C	100 °C	62368-1	75 V	ITE (Commercial)	0.41 in	1.39 in	0.98 in	15 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off Remote Sense	51 W	90 %
Flex Power Modules PKU5511SPI	1	10 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Through Hole	-40 °C	100 °C	62368-1	75 V	ITE (Commercial)	0.41 in	1.39 in	0.98 in	5 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off Remote Sense	50 W	90 %
Flex Power Modules PKU5513ESI	1	4.2 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Surface Mount	-40 °C	105 °C	62368-1	75 V	ITE (Commercial)	0.37 in	1.3 in	0.9 in	12 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off	50 W	92.3 %
Flex Power Modules PKU5517VESI	1	8.5 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Surface Mount	-40 °C	105 °C	62368-1	60 V	ITE (Commercial)	0.37 in	1.3 in	0.9 in	6 V	Sixteenth Brick	Isolated Module	28 V	Adjustable Output Remote On/Off	51 W	91.5 %

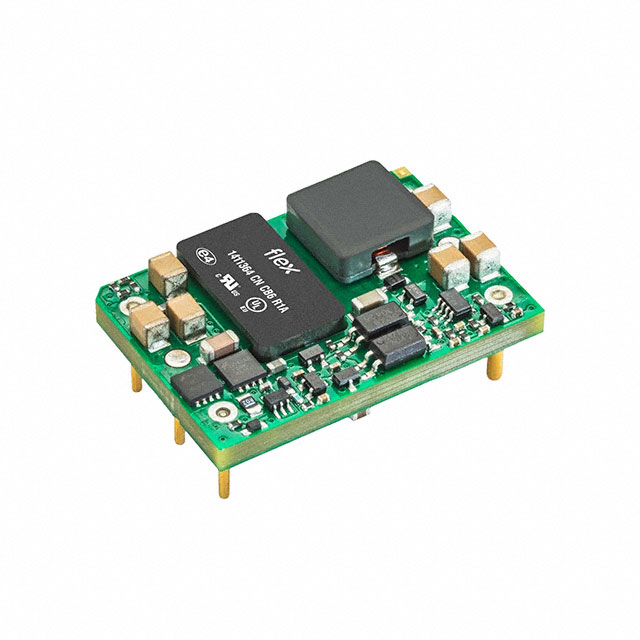

Flex Power Modules PKU5510ESI	1	15 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Surface Mount	-40 °C	105 °C	62368-1	75 V	ITE (Commercial)	0.37 in	1.3 in	0.9 in	3.3 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off	50 W	92 %
Flex Power Modules PKU5516ZSPI	1	2.1 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Through Hole	-40 °C	100 °C	62368-1	75 V	ITE (Commercial)	0.41 in	1.39 in	0.98 in	24 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off Remote Sense	50 W	91 %
Flex Power Modules PKU5513SPI	1	4.2 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Through Hole	-40 °C	100 °C	62368-1	75 V	ITE (Commercial)	0.41 in	1.39 in	0.98 in	12 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off Remote Sense	50 W	90 %
Flex Power Modules PKU5511ESI	1	10 A	Sixteenth Brick	CB CSA IEC TUV UL	2.25 kV	Active Low Enable	Surface Mount	-40 °C	105 °C	62368-1	75 V	ITE (Commercial)	0.37 in	1.3 in	0.9 in	5 V	Sixteenth Brick	Isolated Module	18 V	Adjustable Output Remote On/Off	50 W	92 %
