C14630F003 Series

Catalog

CONN BASE BOTTOM ENTRY SZA3/4

Part	Ingress Protection	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Housing Material	Lock Location	Size	Style	Thread Size

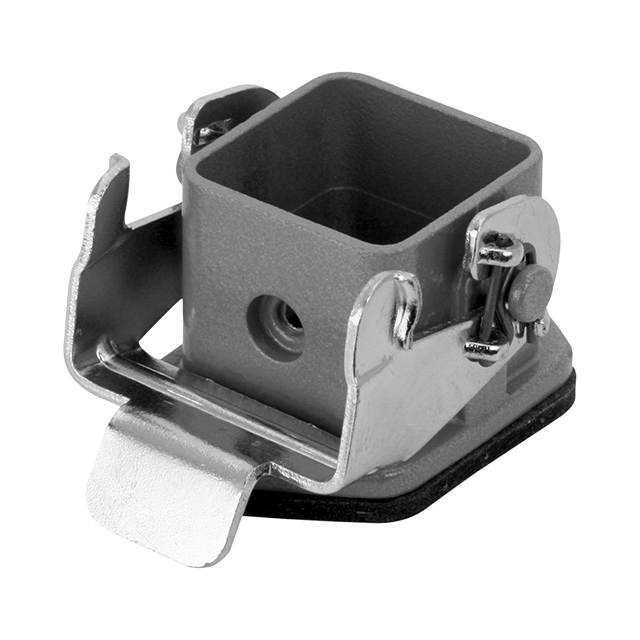

Amphenol Tuchel Industrial C14630F0030004	IP65 - Dust Tight Water Resistant	Base - Panel Mount	-40 C	100 °C	1.594 "	1.102 "	28 mm	0.866 "	40.5 mm	22 mm	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A3/4	Bottom Entry

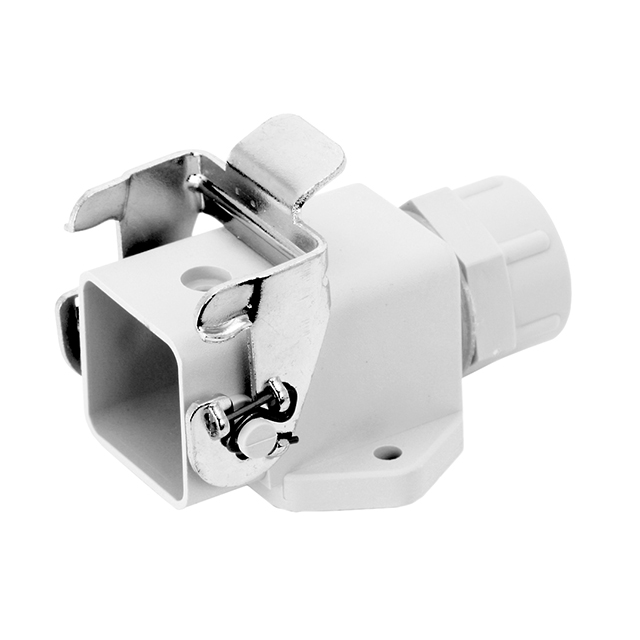

Amphenol Tuchel Industrial C14630F0035004	IP65 - Dust Tight Water Resistant	Base - Panel Mount 90°	-40 C	100 °C	1.094 "	1.575 in	40 mm	1.024 "	27.8 mm	26 mm	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A3/4	Side Entry	PG11

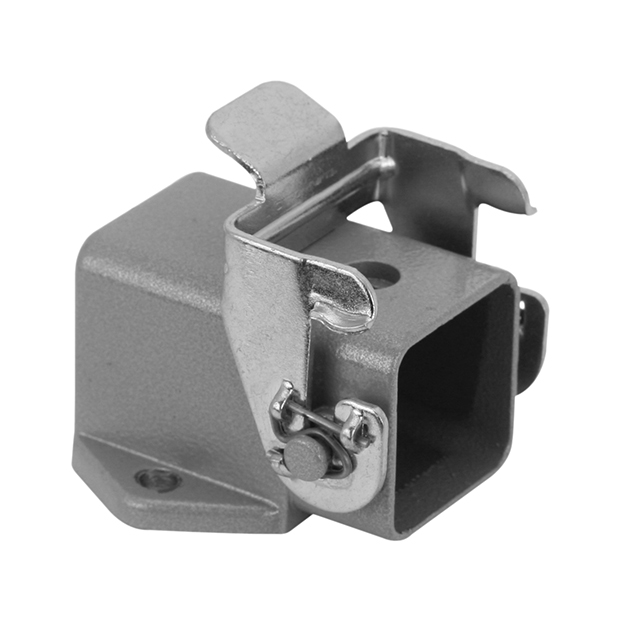

Amphenol Tuchel Industrial C14630F0030044	IP65 - Dust Tight Water Resistant	Base - Panel Mount 90°	-40 C	100 °C	1.094 "	1.575 in	40 mm	1.024 "	27.8 mm	26 mm	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A3/4	Bottom Entry
