PAJ.M1 Series

Manufacturer: LEMO

Catalog

CONN PLUG FMALE 10P SOLDER CUP

Part	Shielding	Shell Size - Insert	Primary Material	Backshell Material, Plating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Orientation [custom]	Insert Material	Current Rating (Amps)	Features	Color	Fastening Type	Mounting Type	Contact Finish - Mating	Shell Material	Number of Positions	Cable Opening	Cable Opening [Max]	Cable Opening [Min]	Ingress Protection	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]
LEMO PAJ.M1.0GL.LC52G	Unshielded	M10	Plastic	Polysulfone (PSU)	Plug Female Sockets	150 °C	-50 °C	Medical	J	Polyetheretherketone (PEEK)	3 A	Backshell	Gray	Detent Lock Push-Pull	Free Hanging (In-Line)	Gold	Polysulfone (PSU)	10	4 mm 5.2 mm	0.205 in	0.157 in	IP50 - Dust Protected
LEMO PAJ.M1.0GL.LC52V	Unshielded	M10	Plastic	Polysulfone (PSU)	Plug Female Sockets	150 °C	-50 °C	Medical	J	Polyetheretherketone (PEEK)	3 A	Backshell	Gray Green	Detent Lock Push-Pull	Free Hanging (In-Line)	Gold	Polysulfone (PSU)	10	4 mm 5.2 mm	0.205 in	0.157 in	IP50 - Dust Protected
LEMO PAJ.M1.0GL.LC39G	Unshielded	M10	Plastic	Polysulfone (PSU)	Plug Female Sockets	150 °C	-50 °C	Medical	J	Polyetheretherketone (PEEK)	3 A	Backshell	Gray	Detent Lock Push-Pull	Free Hanging (In-Line)	Gold	Polysulfone (PSU)	10		0.154 in	0.106 in	IP50 - Dust Protected	3.9 mm	2.7 mm

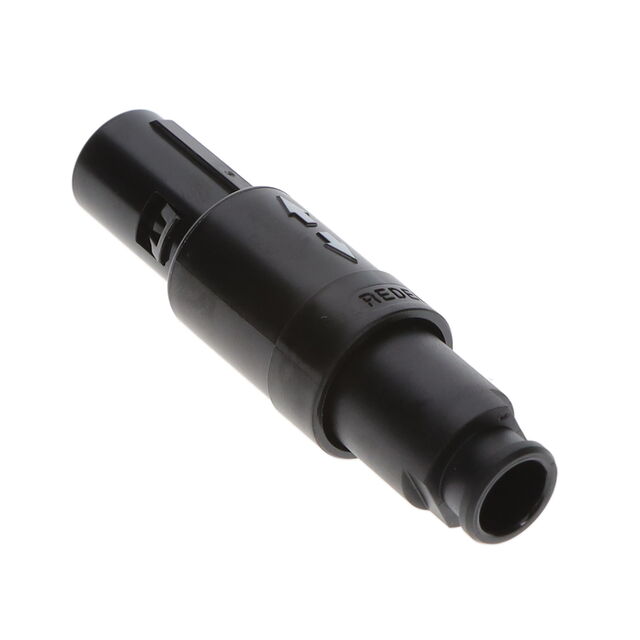

LEMO PAJ.M1.2TL.LC52NZ	Unshielded	M12	Plastic	Polyetherimide (PEI)	Plug Female Sockets	170 °C	-50 °C	Medical	J	Polyetheretherketone (PEEK)	7 A	Backshell	Black	Detent Lock Push-Pull	Free Hanging (In-Line)	Gold	Polyetherimide (PEI)	12	4 mm 5.2 mm	0.205 in	0.157 in	IP50 - Dust Protected
LEMO PAJ.M1.4GL.U0818								Medical
LEMO PAJ.M1.4GL.LC65G	Unshielded	M14	Plastic	Polysulfone (PSU)	Plug Female Sockets	150 °C	-50 °C	Medical	J	Polyetheretherketone (PEEK)	2 A	Backshell	Gray	Detent Lock Push-Pull	Free Hanging (In-Line)	Gold	Polysulfone (PSU)	14		0.256 in	0.209 in	IP50 - Dust Protected		5.3 mm	6.5 mm

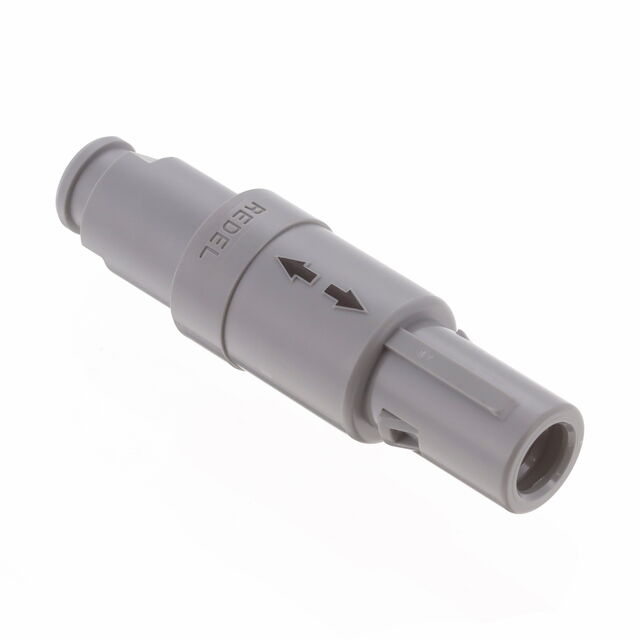

LEMO PAJ.M1.0GL.LC65GZ	Unshielded	M10	Plastic	Polysulfone (PSU)	Plug Female Sockets	150 °C	-50 °C	Medical	J	Polyetheretherketone (PEEK)	3 A	Backshell	Gray	Detent Lock Push-Pull	Free Hanging (In-Line)	Gold	Polysulfone (PSU)	10		0.256 in	0.209 in	IP50 - Dust Protected		5.3 mm	6.5 mm
LEMO PAJ.M1.4GL.LC65Z	Unshielded	M14	Plastic	Polysulfone (PSU)	Plug Female Sockets	150 °C	-50 °C	Medical	J	Polyetheretherketone (PEEK)	2 A	Backshell	Gray	Detent Lock Push-Pull	Free Hanging (In-Line)	Gold	Polysulfone (PSU)	14		0.256 in	0.209 in	IP50 - Dust Protected		5.3 mm	6.5 mm
