NCX2222 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

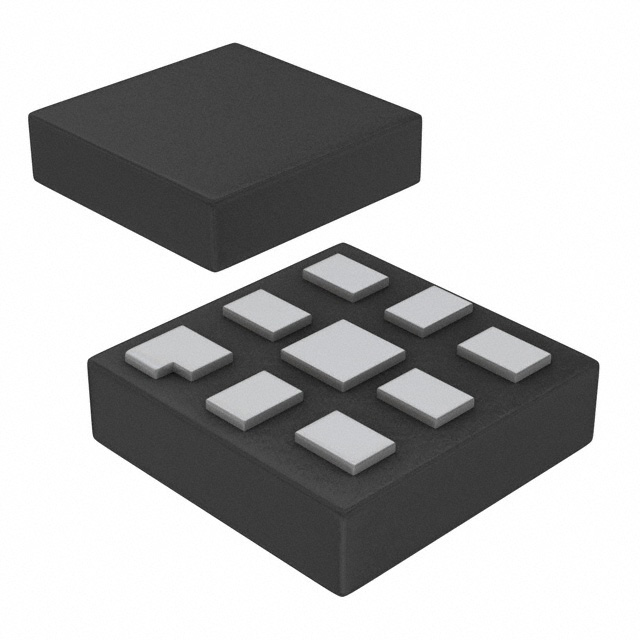

IC COMPARATOR 2 GEN PUR 8XQFN
| Part | Package Width | Package Name | Package Length | Propagation Delay (Max) | Hysteresis | Type | Voltage - Input Offset (Max) | CMRR (Typ) | PSRR (Typ) | Output Type | Supply Configuration | Voltage - Supply (Single) Maximum | Voltage - Supply (Single) Minimum | Current - Quiescent (Max) | Mounting Type | Current - Input Bias (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Number of Elements | Current - Output (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 1.6 mm | 8-XQFN | 1.6 mm | 0.8 µs | 9 mV | General Purpose Standard (General Purpose) | 30 mV | 70 dB | 80 dB | Open-Drain | Dual Single | 5.5 V | 1.3 V | 5 µA | Surface Mount | 1 pA | -40 °C | 85 °C | 8-XFQFN Exposed Pad | 2 | 68 mA |
 NXP USA Inc. | 1 mm | 8-XSON SOT1089 | 1.35 mm | 0.8 µs | 9 mV | General Purpose Standard (General Purpose) | 30 mV | 70 dB | 80 dB | Open-Drain | Dual Single | 5.5 V | 1.3 V | 5 µA | Surface Mount | 1 pA | -40 °C | 85 °C | 8-XFDFN | 2 | 68 mA |
