957216 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K
HEADERS & WIRE HOUSINGS 16/HDR/BX/2MM/2R STR/SMT/10U/RC/TRPD
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Shrouding | Contact Finish - Mating | Material Flammability Rating | Termination | Features | Contact Shape | Number of Positions Loaded | Connector Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Fastening Type | Contact Finish - Post | Contact Type | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Insulation Color | Contact Finish Thickness - Mating | Mounting Type | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 39.4 çin | 1 çm | Thermoplastic | Shrouded - 4 Wall | Gold | UL94 V-0 | Solder | Keying Slot Pick and Place | Square | All | Header | Copper Alloy | -40 C | 105 ░C | 16 | 2 mm | 0.079 in | 2 | Push-Pull | Tin | Male Pin | 0.079 " | 2 mm | 5.6 mm | 0.22 in | Black | Flash | Surface Mount | ||

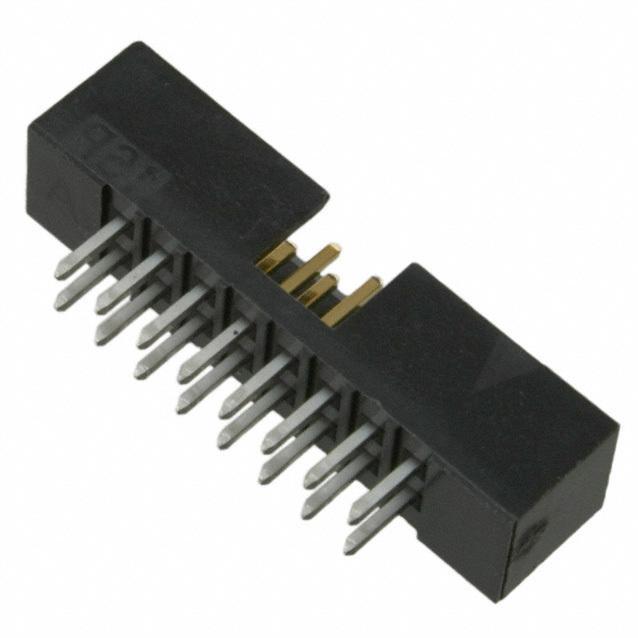

 3M Electronic Specialty | 39.4 çin | 1 çm | Thermoplastic | Shrouded - 4 Wall | Gold | UL94 V-0 | Solder | Keying Slot | Square | All | Header | Copper Alloy | -40 C | 105 ░C | 16 | 2 mm | 0.079 in | 2 | Push-Pull | Tin | Male Pin | 0.079 " | 2 mm | 5.6 mm | 0.22 in | Black | Flash | Through Hole | 0.118 in | 3 mm |
 3M Electronic Specialty | 39.4 çin | 1 çm | Thermoplastic | Shrouded - 4 Wall | Gold | UL94 V-0 | Solder | Keying Slot | Square | All | Header | Copper Alloy | -40 C | 105 ░C | 16 | 2 mm | 0.079 in | 2 | Push-Pull | Tin | Male Pin | 0.079 " | 2 mm | 5.51 mm | 0.217 in | Black | Flash | Right Angle Through Hole | 0.118 in | 3 mm |
