ANT-LPC Series

Catalog

RF ANT LTE CBRS FLEX ADHES UFL

Part	Termination	Termination	Number of Bands	Return Loss	Power - Max [Max]	Features	Features	RF Family/Standard	Applications	Antenna Type	Frequency (Center/Band)	VSWR	Mounting Type	Frequency Range [Min]	Frequency Range [Max]	Frequency Group	Height (Max) [z]	Height (Max) [Max] [z]

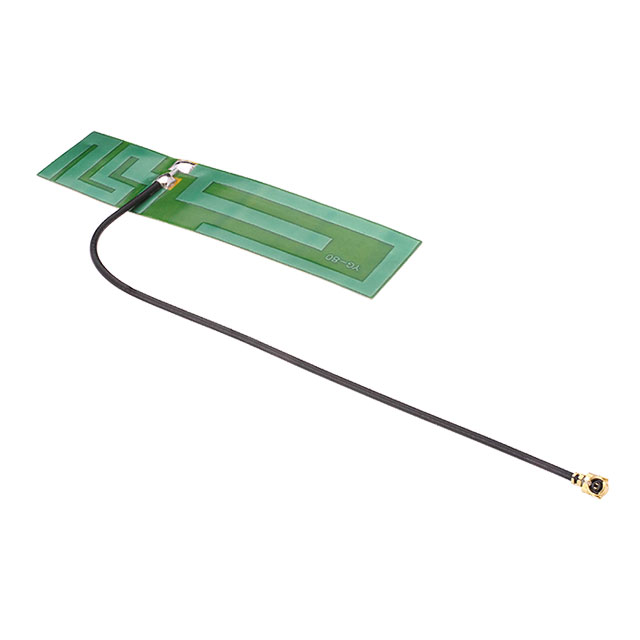

TE Connectivity AMP Connectors ANT-LPC-FPC-100	I-PEX MHF1 IPEX MHF1	U.FL	8	-11.7 dB -9.5 dB -5.8 dB -5.1 dB -3.7 dB -3.6 dB	2 W	Cable	100 mm	Cellular Navigation	General Purpose	Flat Patch	1.58 GHz 1.96 GHz 2.35 GHz 2.44 GHz 2.59 GHz 3.55 GHz 750 MHz 876 MHz	1.7 2 2.7 3.1 3.5 4.8 4.9 8.2	Adhesive	1.553 GHz 1.71 GHz 2.3 GHz 2.4 GHz 2.496 GHz 3.3 GHz 698 MHz 791 MHz	1.609 GHz 2.2 GHz 2.4 GHz 2.69 GHz 3.8 GHz 803 MHz 960 MHz 2485 MHz	Wide Band	0.2 mm	0.01 in
