MNG18 Series

Catalog

CONN QC TAB 18-22AWG 0.250 100PC

Part	Insulation Diameter	Insulation Diameter	Gender	Terminal Type	Tab Width [x]	Tab Width [x]	Contact Finish	Tab Thickness	Tab Thickness	Color	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Insulation	Termination	Contact Material	Material - Insulation	Length - Termination [custom]	Length - Termination [custom]	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]

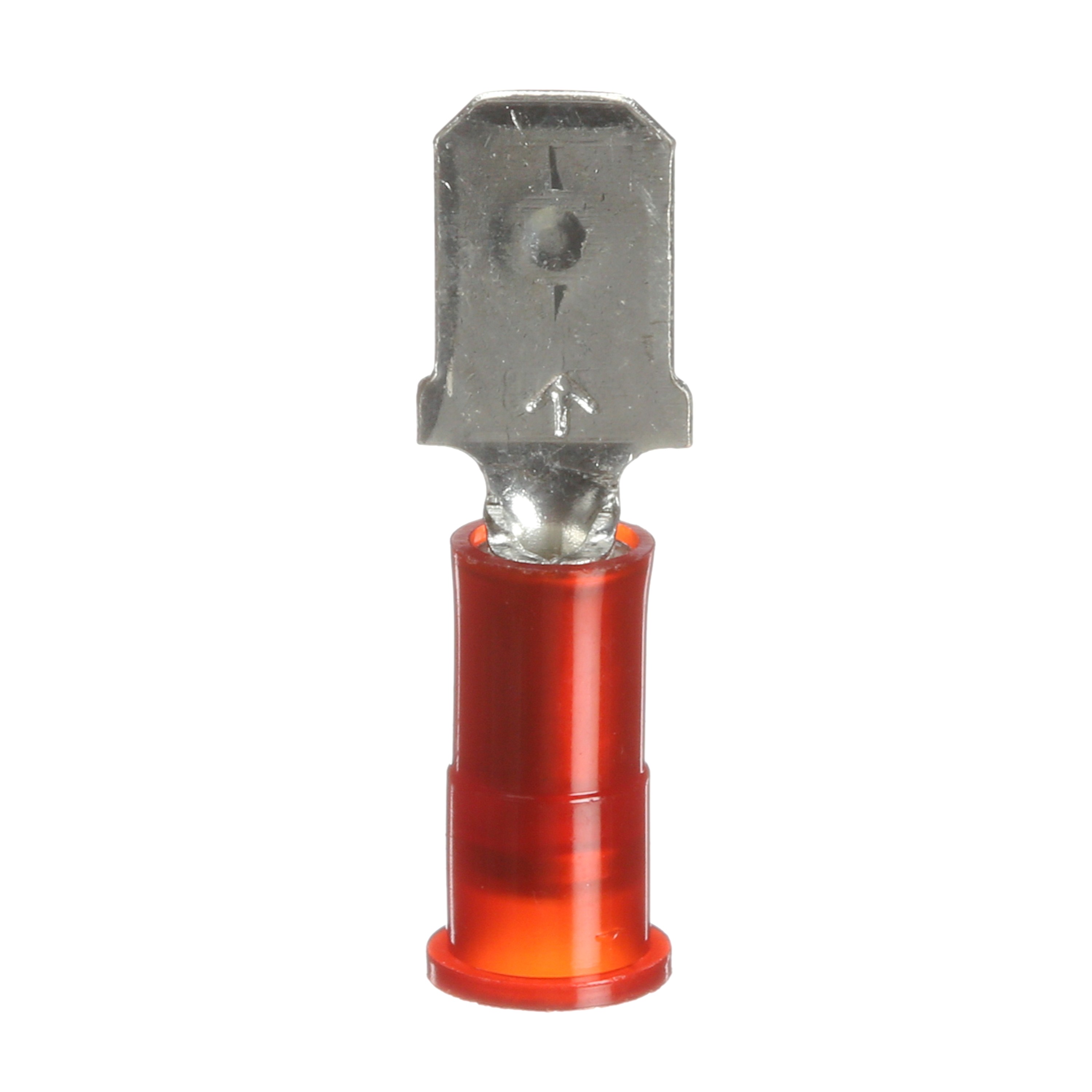

3M Electronic Specialty MNG18-250DMX-BOTTLE	0.145 in	3.68 mm	Male	Standard	6.35 mm	0.25 in	Tin	0.81 mm	0.032 in	Red	22 AWG	17.5 AWG	23.37 mm	0.92 in	Free Hanging (In-Line)	Non-Mating End Insulated	Crimp	Copper ETP
3M Electronic Specialty MNG18-8FFBX-BOTTLE	0.145 in	3.68 mm		Flanged			Tin			Red	22 AWG	17.5 AWG	21.34 mm	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon Polyamide (PA)	0.44 in	11.18 mm	6.35 mm	0.25 "	8 Stud
3M Electronic Specialty MNG18-187DFIK	0.145 in	3.68 mm	Female	Standard	4.75 mm	0.187 in	Tin	0.51 mm	0.02 in	Red	22 AWG	17.5 AWG	20.57 mm	0.81 "	Free Hanging (In-Line)	Fully Insulated	Crimp	Brass
3M Electronic Specialty MNG18-10FFBK	0.145 in	3.68 mm		Flanged			Tin			Red	22 AWG	17.5 AWG	21.34 mm	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon Polyamide (PA)	0.44 in	11.18 mm	6.35 mm	0.25 "	10 Stud
3M Electronic Specialty MNG18-10FFBX-BOTTLE	0.145 in	3.68 mm		Flanged			Tin			Red	22 AWG	17.5 AWG	21.34 mm	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon Polyamide (PA)	0.44 in	11.18 mm	6.35 mm	0.25 "	10 Stud
3M Electronic Specialty MNG18-6FFB/SX-BOTTLE	0.145 in	3.68 mm		Flanged			Tin			Red	22 AWG	17.5 AWG	21.34 mm	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon Polyamide (PA)	0.44 in	11.18 mm	6.35 mm	0.25 "	6 Stud	6.35 mm	0.25 "
3M Electronic Specialty MNG18-4FLX-BOTTLE	0.145 in	3.68 mm		Snap Spring			Tin			Red	22 AWG	17.5 AWG	22.1 mm	0.87 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon Polyamide (PA)	0.44 in	11.18 mm	6.35 mm	0.25 "	4 Stud	6.35 mm	0.25 "
3M Electronic Specialty MNG18-8FX-BOTTLE	0.145 in	3.68 mm		Standard			Tin			Red	22 AWG	17.5 AWG	18.54 mm	0.73 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon Polyamide (PA)	0.44 in	11.18 mm			8 Stud			7.37 mm	0.29 in	0.34 in	8.64 mm
3M Electronic Specialty MNG18-156DMK-A				Male Pin (Plug)			Tin			Red	22 AWG	17.5 AWG	22.1 mm	0.87 in		Non-Mating End Insulated	Crimp	Brass	Nylon Polyamide (PA)												0.15 in	3.81 mm	0.156 in	3.96 mm

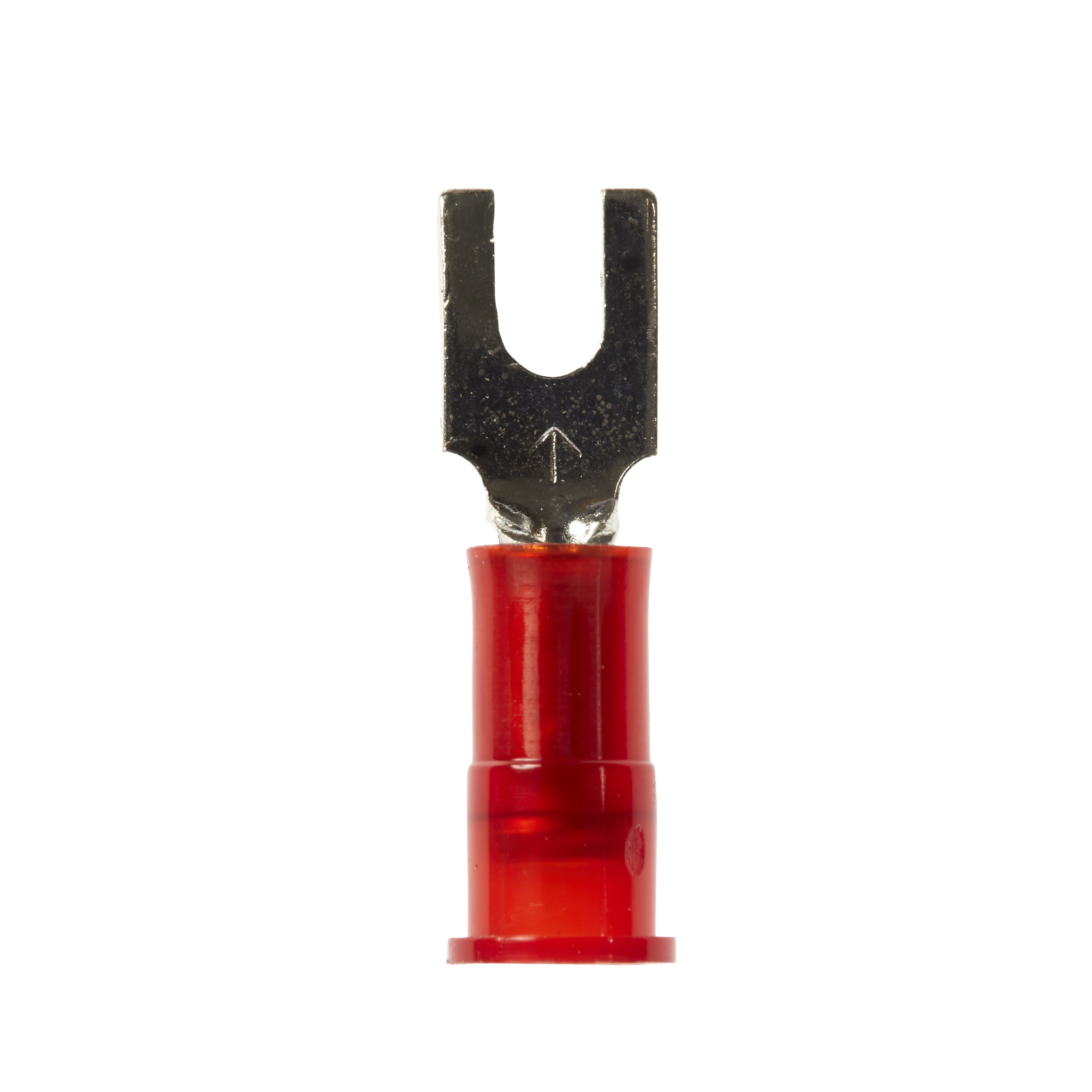

3M Electronic Specialty MNG18-4FB/SK	0.145 in	3.68 mm		Standard			Tin			Red	22 AWG	17.5 AWG	21.34 mm	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon Polyamide (PA)	0.44 in	11.18 mm	6.35 mm	0.25 "	4 Stud	6.35 mm	0.25 "
