R12441 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / ADJUSTABLE SQUARE FLANGE J
| Part | Body Finish | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Center Contact Material | Mounting Feature | Shield Termination | Contact Termination | Connector Type | Housing Color | Number of Ports | Mounting Type | Features | Connector Style | Frequency - Max [Max] | Impedance | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

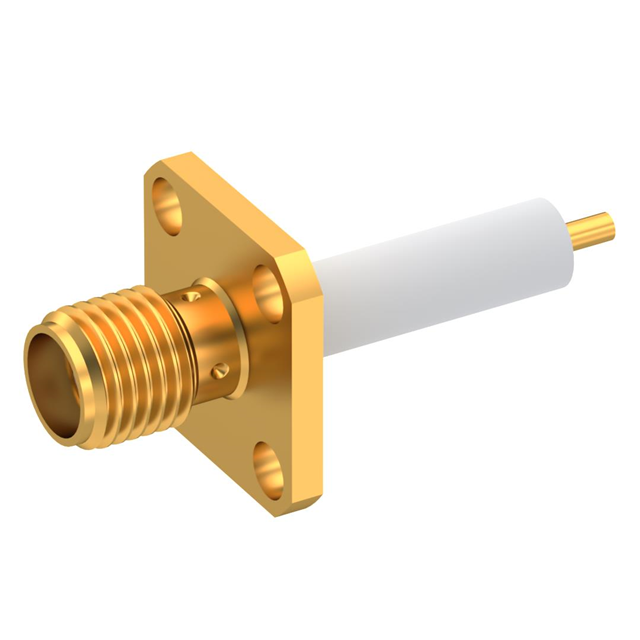

 Radiall USA, Inc. | Gold | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 500 V | Beryllium Copper | Flange | Solder | Solder | Female Socket Jack | Gold | 1 | Panel Mount Through Hole | Extended Insulation | SMA | 18 GHz | 50 Ohms | Threaded |

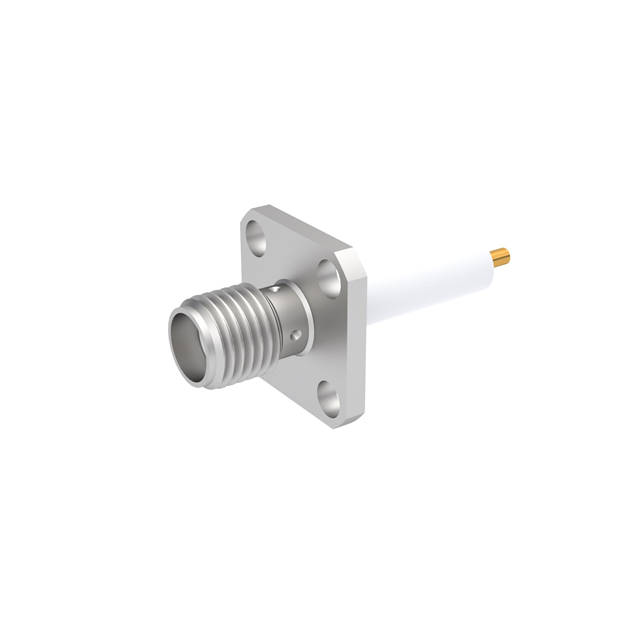

 Radiall USA, Inc. | White Bronze | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | 500 V | Beryllium Copper | Flange | Solder | Solder | Female Socket Jack | Silver | 1 | Panel Mount Through Hole | Extended Insulation | SMA | 18 GHz | 50 Ohms | Threaded |
