3218J Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

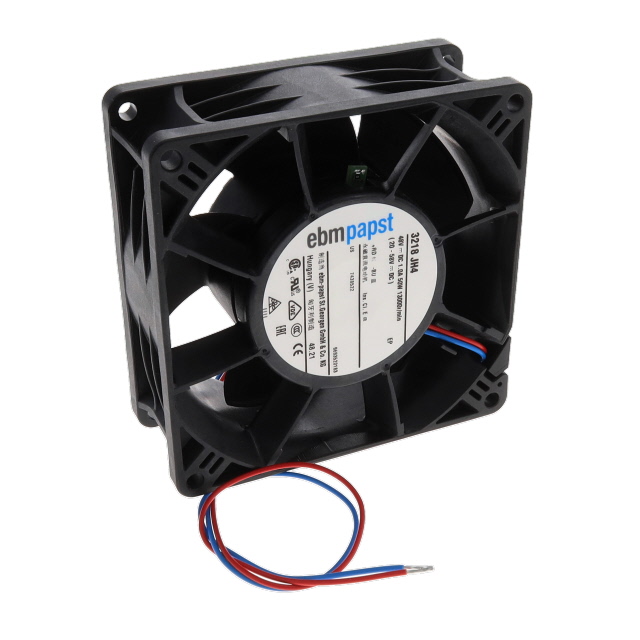

FAN AXIAL 92X38MM 48VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Lifetime @ Temp. | Material - Blade | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Approval Agency | Power (Watts) | Noise | Bearing Type | Width [y] | RPM | Voltage - Rated | Air Flow | Air Flow | Size / Dimension [y] | Size / Dimension [x] | Features | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 53 VDC | 36 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 70000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | 2 Wire Leads | -20 ░C | 70 °C | Tubeaxial | CSA UL VDE | 9.5 W | 55 dB(A) | Ball | 38 mm | 6800 RPM | 48 VDC | 86 CFM | 2.41 m³/min | 92 mm | 92 mm | |||
 ebm-papst Inc. | 58 VDC | 20 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | 2 Wire Leads | -20 ░C | 70 °C | Tubeaxial | CSA UL VDE | 50 W | 73 dB(A) | Ball | 38 mm | 13000 RPM | 48 VDC | 164.9 CFM | 4.62 mł/min | 92 mm | 92 mm | |||
 ebm-papst Inc. | 58 VDC | 20 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polyamide (PA) Nylon Fiberglass Reinforced | 4 Wire Leads | -10 °C | 60 °C | Tubeaxial | CSA UL VDE | 50 W | 73 dB(A) | Ball | 38 mm | 11000 RPM | 48 VDC | 165 CFM | 4.62 mł/min | 92 mm | 92 mm | PWM Control Speed Sensor (Tach) | 0.62 lb | 281.23 g | |
ebm-papst Inc. | 56 VDC | 36 VDC | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 70000 Hrs | Polyamide (PA) Nylon Fiberglass Reinforced | 2 Wire Leads | -20 ░C | 70 °C | Tubeaxial | CSA UL VDE | 7 W | 51 dB(A) | Ball | 38 mm | 6000 RPM | 48 VDC | 76.5 CFM | 2.14 mł/min | 92 mm | 92 mm |
