IRFHM8363 Series

Manufacturer: INFINEON

Catalog

MOSFET 2N-CH 30V 11A 8PQFN

Part	Current - Continuous Drain (Id) @ 25°C	Package / Case	Mounting Type	Technology	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Power - Max [Max]	Drain to Source Voltage (Vdss)	Configuration	Gate Charge (Qg) (Max) @ Vgs	FET Feature	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]

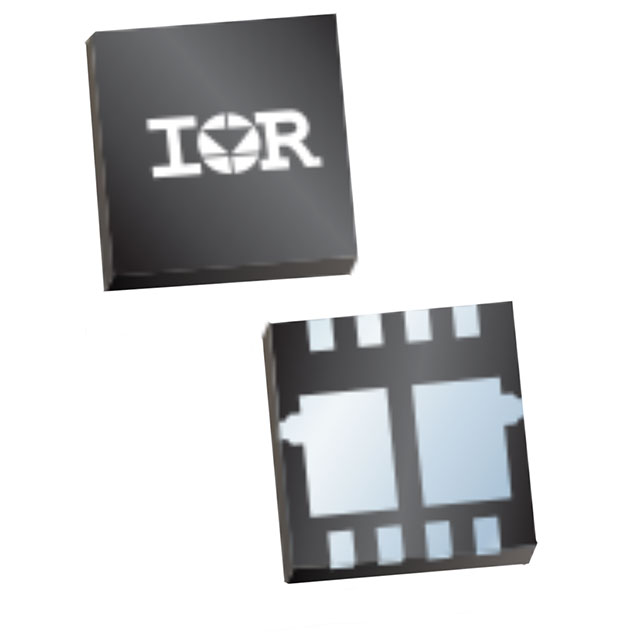

INFINEON IRFHM8363TR2PBF	11 A	8-PowerVDFN	Surface Mount	MOSFET (Metal Oxide)	3.3	3.3	8-PQFN-Dual	2.7 W	30 V	2 N-Channel (Dual)	15 nC	Logic Level Gate	1165 pF	14.9 mOhm	2.35 V
INFINEON IRFHM8363TRPBF	11 A	8-PowerVDFN	Surface Mount	MOSFET (Metal Oxide)	3.3	3.3	8-PQFN (3.3x3.3) Power33	2.7 W	30 V	2 N-Channel (Dual)	15 nC	Logic Level Gate	1165 pF	14.9 mOhm	2.35 V	150 °C	-55 °C
