FPQ1553 Series
Manufacturer: iNRCORE
Beta
⌘K

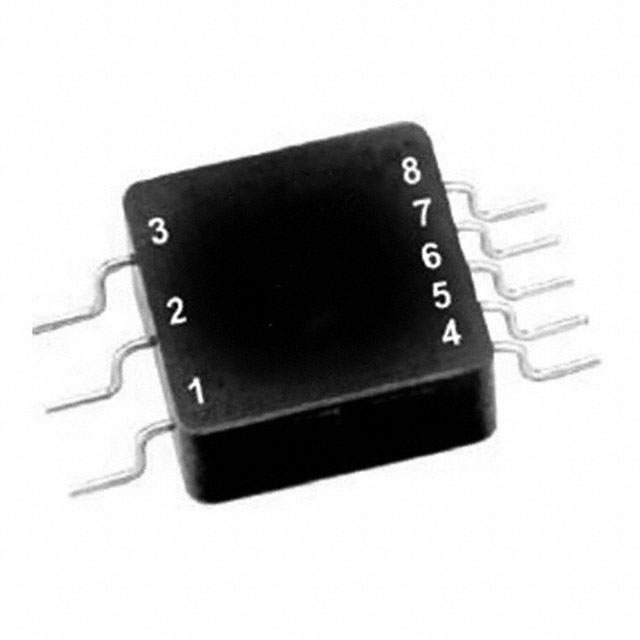

PULSE TRANSFORMER 1.4CT:1CT/2CT:1CT 100VRMS 3.5OHM PRIM. DCR 3OHM SEC. DCR 8 TERMINAL FLAT SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Transformer Type | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Turns Ratio - Primary:Secondary | Turns Ratio - Primary:Secondary | Turns Ratio - Primary:Secondary |
|---|---|---|---|---|---|---|---|---|---|---|---|
 iNRCORE | 6.45 mm | 0.254 in | MIL-STD-1553 | Surface Mount | 15.86 mm | 0.624 in | 0.624 in | 15.86 mm | 1.4CT:1CT 2CT:1CT | ||
 iNRCORE | 6.45 mm | 0.254 in | MIL-STD-1553 | Surface Mount | 15.86 mm | 0.624 in | 0.624 in | 15.86 mm | 1CT:0.707CT | 1CT:1CT |
