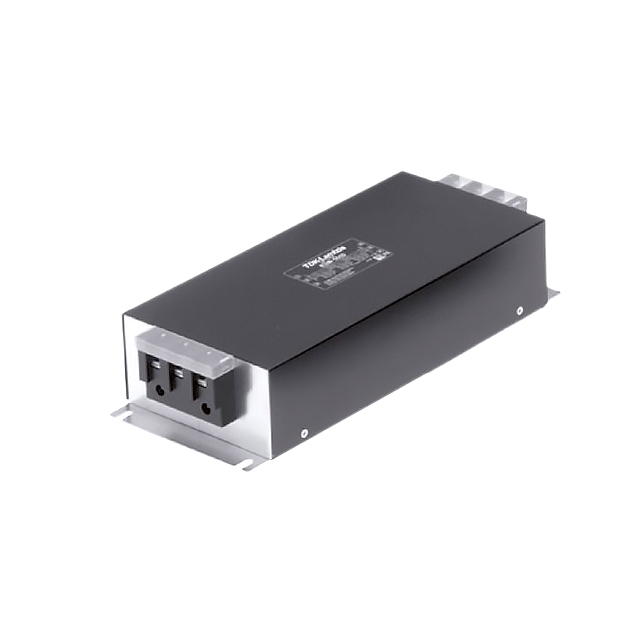

RTHN Series

Catalog

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 100 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Part	Voltage - Rated DC	Configuration	Filter Type	Voltage - Rated AC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Current	Termination Style	Mounting Type	Applications

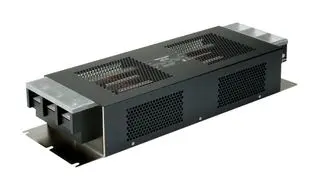

TDK Corporation RTHN-5100	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN UL	100 A	Terminal Block	Chassis Mount	General Purpose
TDK Corporation RTHN-5030	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN UL	30 A	Terminal Block	Chassis Mount	General Purpose
TDK Corporation RTHN-5250	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN	250 A	Terminal Block	Chassis Mount	General Purpose
TDK Corporation RTHN-5060	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN UL	60 A	Terminal Block	Chassis Mount	General Purpose
TDK Corporation RTHN-5020	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN UL	20 A	Terminal Block	Chassis Mount	General Purpose
TDK Corporation RTHN-5010	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN UL	10 A	Terminal Block	Chassis Mount	General Purpose
TDK Corporation RTHN-5080	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN UL	80 A	Terminal Block	Chassis Mount	General Purpose
TDK Corporation RTHN-5040	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN UL	40 A	Terminal Block	Chassis Mount	General Purpose

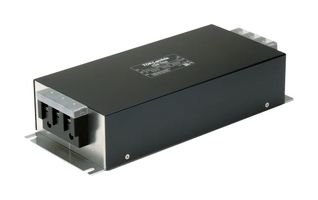

TDK Corporation RTHN-5300	500 V	Two Stage	Three Phase (Delta)	500 V	85 °C	-25 °C	EN	300 A	Terminal Block	Chassis Mount	General Purpose
