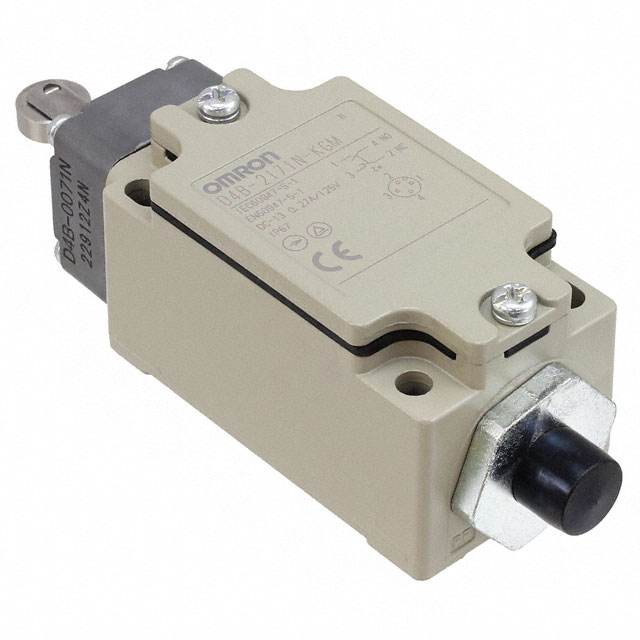

D4B-2171 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 120V
| Part | Pretravel | Pretravel | Operating Temperature [Max] | Operating Temperature [Min] | Overtravel | Overtravel | Actuator Type | Operating Position | Operating Position | Electrical Life | Termination Style | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Operating Force | Ingress Protection | Voltage Rating - AC | Mechanical Life | Release Force | Voltage Rating - DC | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 2 mm | 0.08 in | 80 °C | -40 C | 0.197 " | 5 mm | Roller Plunger | 1.89 in | 48 mm | 500000 Cycles | Screw Terminal | Chassis Mount | SPDT (DB/DM) | On-Mom | 6 A 10 A | 1900 gf | IP67 - Dust Tight Waterproof | 120 V | 30000000 Cycles | 200 gf | 30 V | 1 mm | 0.04 in |
