RPX-1.0 Series
Manufacturer: Recom Power
Beta
⌘K

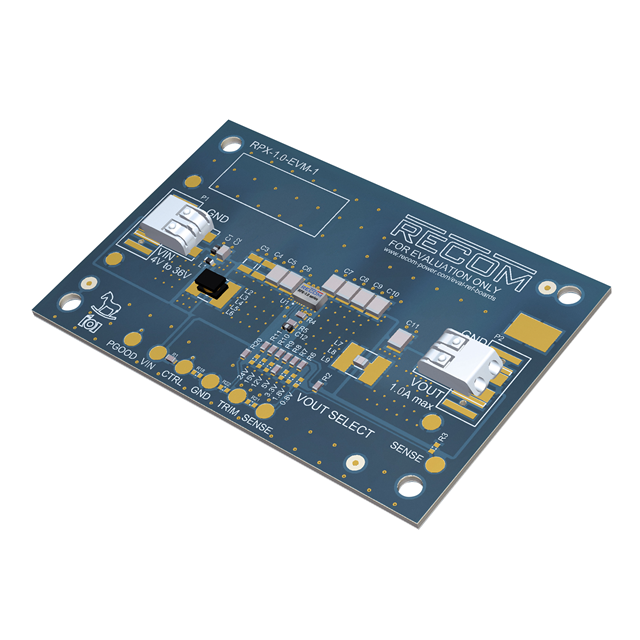

EVALUATION BOARD, BUCK REGULATOR
| Part | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Current - Output | Voltage - Output | Contents | Utilized IC / Part | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Package / Case | Voltage - Input (Min) [Min] | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Supplier Device Package | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Applications | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Board(s) | Fully Populated | 7 Non-Isolated Outputs Non-Isolated | 7 | 1 A | 0.8 V 1.8 V 3.3 V 5 V 12 V 15 V 24 V | Board(s) | RPX-1.0 | Buck | 4 V | 36 V | DC/DC Step Down | ||||||||||||||||||

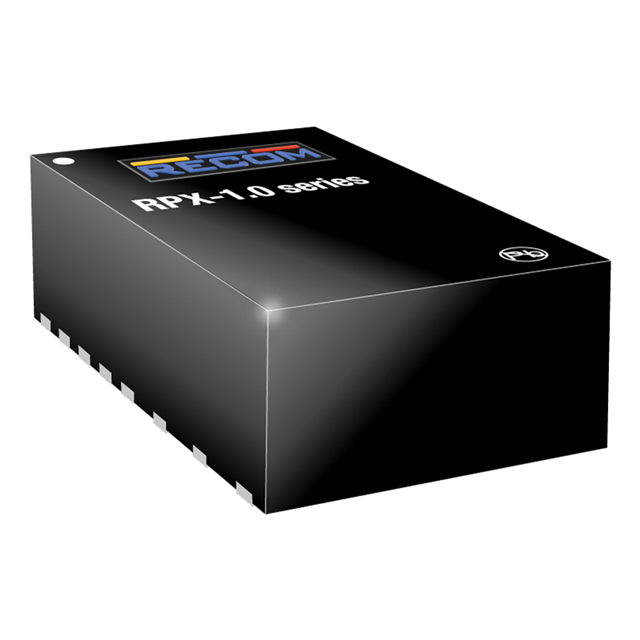

 Recom Power | 16-PowerLFQFN Module | 4 V | 0.8 V | 30 V | 16-QFN (5x3) | 1 A | 1 | 36 V | Non-Isolated PoL Module | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | Surface Mount | ITE (Commercial) | 87 % | ||||||||||||
 Recom Power | 16-PowerLFQFN Module | 4 V | 0.8 V | 30 V | 16-QFN (5x3) | 1 A | 1 | 36 V | Non-Isolated PoL Module | 0.06 " | 0.12 in | 3 mm | 5 mm | 0.2 in | 1.6 mm | Surface Mount | ITE (Commercial) | 87 % |
