RP30-FW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W DC/DC 1.6KV REG 4:1 18-75IN +/-5OUT

Part	Number of Outputs	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max)	Voltage - Input (Max) [Max]	Package / Case	Type	Voltage - Output 2	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Size / Dimension	Applications	Features	Efficiency	Control Features	Current - Output (Max) [Max]
Recom Power RP30-4805DFW-HC	2	5 V	18 V	3 A	75 V	6-DIP Module	Isolated Module	-5 V	30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	88 %	Active High Enable

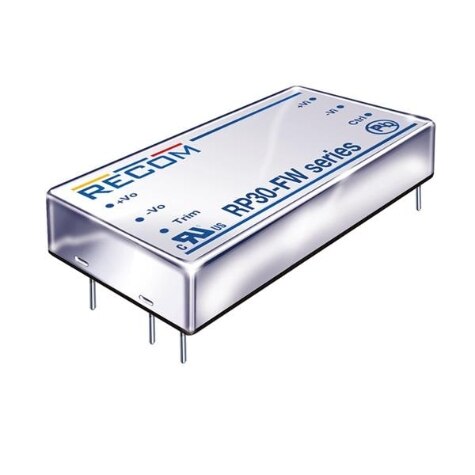

Recom Power RP30-4815SFW	1	15 V	18 V		75 V	6-DIP Module	Isolated Module		30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	91 %	Active High Enable	2 A
Recom Power RP30-4812DFW/N	2	12 V	18 V	1.25 A	75 V	6-DIP Module	Isolated Module	-12 V	30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	88 %	Active Low Enable
Recom Power RP30-2415SFW/N-HC	1	15 V	9 V		36 V	6-DIP Module	Isolated Module		30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	89 %	Active Low Enable	2 A
Recom Power RP30-2415DFW	2	15 V	9 V	1 A	36 V	6-DIP Module	Isolated Module	-15 V	30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	87 %	Active High Enable
Recom Power RP30-2412SFW	1	12 V	9 V		36 V	6-DIP Module	Isolated Module		30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP	89 %	Active High Enable	2.5 A
Recom Power RP30-4815SFW-HC	1	15 V	18 V		75 V	6-DIP Module	Isolated Module		30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	91 %	Active High Enable	2 A
Recom Power RP30-2415SFW/N	1	15 V	9 V		36 V	6-DIP Module	Isolated Module		30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	89 %	Active Low Enable	2 A
Recom Power RP30-2405DFW/N	2	5 V	9 V	3 A	36 V	6-DIP Module	Isolated Module	-5 V	30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	88 %	Active Low Enable
Recom Power RP30-2405DFW	2	5 V	9 V	3 A	36 V	6-DIP Module	Isolated Module	-5 V	30 Watts	85 °C	-40 C	Through Hole	1.6 kV	0.4 in 10.2 mm 25.4 mm 50.8 mm	ITE (Commercial)	OCP OVP Remote On/Off SCP	88 %	Active High Enable
